LS Manufacturing delivers engineered low pressure die casting solutions for components where structural integrity, pressure tightness, and dimensional consistency are critical. Our process is designed for superior metallurgical quality and efficient production of complex parts.
Get an instant quote today.
Get instant pricing, project lead times, and DFM feedback
STEP | STP | SLDPRT | STL | OBJ | 3MF | IGES | X_T | X_B | PRT | SAT | JT files
File size: 15MB
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
At LS Manufacturing, our customers' trust is earned through 15+ years of expertise, ensuring ±0.5% dimensional accuracy and quality across 12,000+ projects, as demonstrated by ISO 9001:2015 certification and 99.80% on-time delivery.
Low pressure die casting at LS Manufacturing combines precision tooling with controlled pressure systems to deliver high-integrity components. Our process ensures uniform mold filling, reduced turbulence, and directional solidification under sustained pressure—resulting in castings with superior density, dimensional accuracy, and batch-to-batch repeatability for mass production.
We support a wide range of aluminum and magnesium alloys optimized for low pressure die casting, offering full-service solutions from prototyping and trial runs to medium- and high-volume series production. This enables an ideal balance of performance, cost efficiency, and scalability.
LS Manufacturing specializes in robust low pressure die casting solutions tailored for large-scale manufacturing across automotive, aerospace, and industrial sectors. We ensure consistent delivery performance and quality control for multi-variant structural parts requiring high reliability.

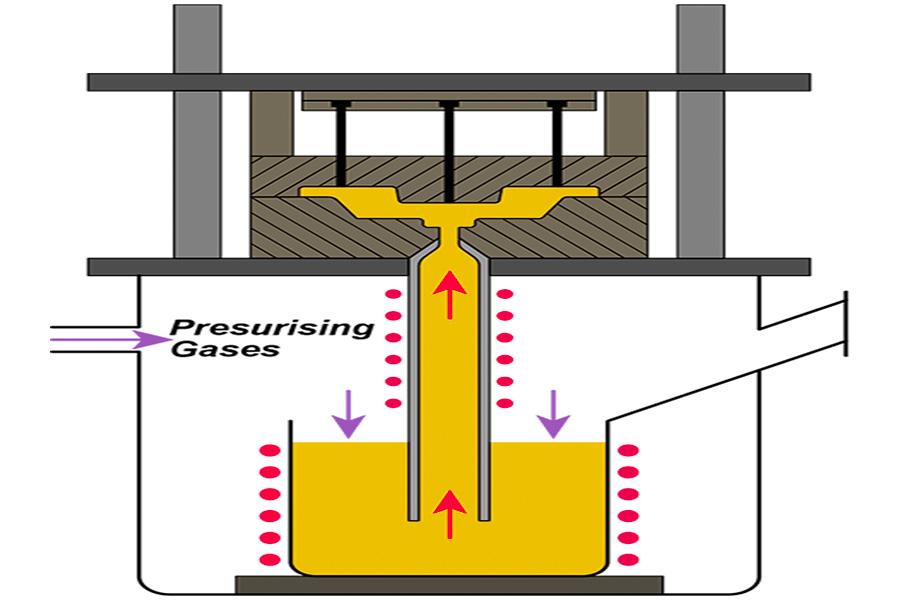

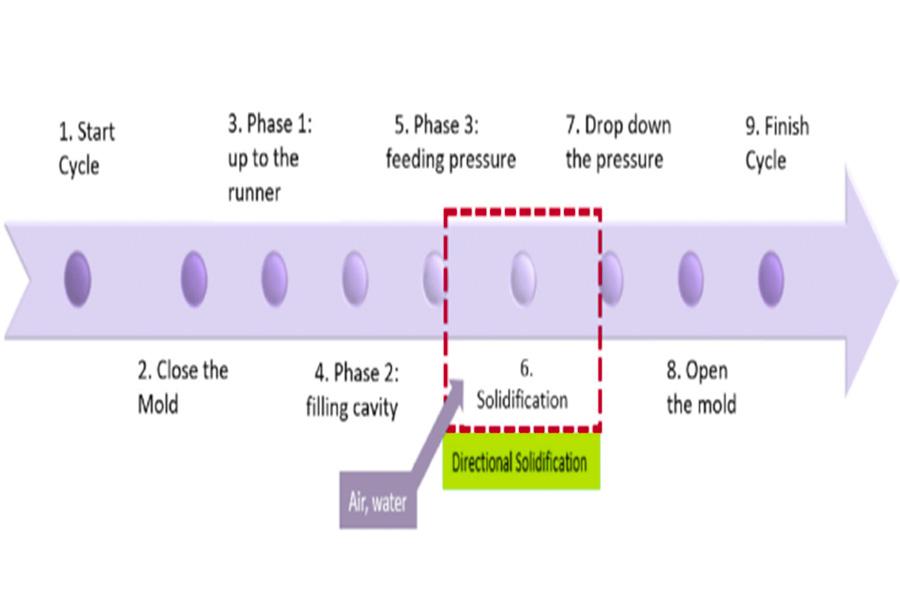

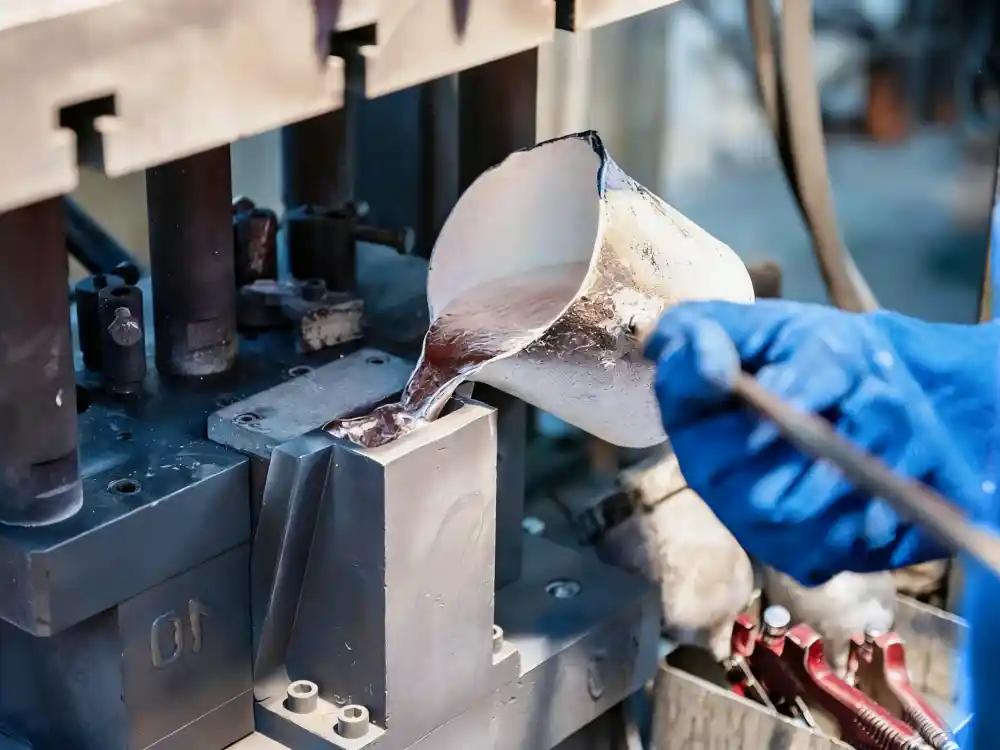

Low pressure die casting is an automated metal-forming process where molten metal is injected into a reusable steel mold under controlled low pressure. The metal fills the cavity smoothly from the bottom upward, reducing air entrapment and enabling pressurized solidification. This method is ideal for producing high-quality, porosity-free aluminum and magnesium components with excellent mechanical properties and surface finish—particularly suited for complex, thin-walled parts requiring high consistency and cost-effective series production.
We have developed three advanced low pressure die casting methodologies to support medium- to high-volume production requirements, delivering high consistency, cost-effectiveness, and reliability for industrial-scale component manufacturing.

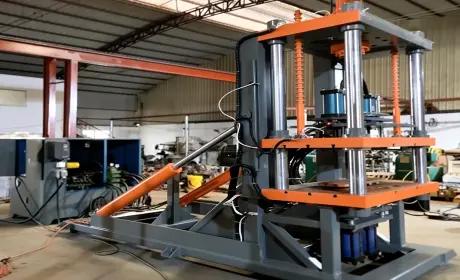

Utilizes single or two-stage pressure control for high-efficiency mass production. This mature and stable process is ideal for medium- to large-series orders, offering strong cost control and reliable output for a wide range of structural components.

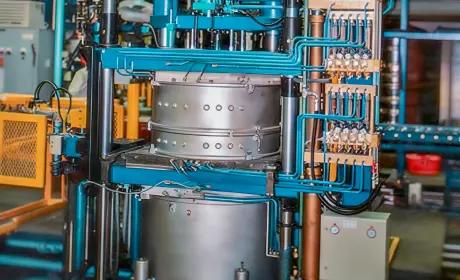

Employs a sealed pressure tank system where both mold and crucible are pressurized, enabling smooth filling and enhanced feeding through precise pressure differentials. This method achieves exceptional casting density exceeding 99.8%, making it suitable for critical automotive and new energy components requiring premium integrity.

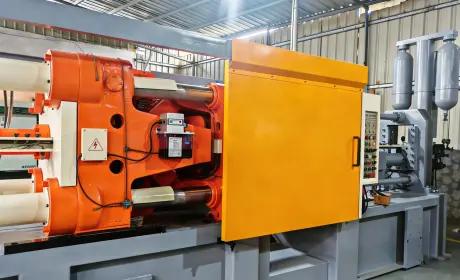

Incorporates a multi-stage precision pressure control system with full computer closed-loop monitoring. This advanced solution ensures consistent high-precision production for mid- to high-end applications, optimally balancing manufacturing efficiency with superior quality standards.
The following are the core technical parameters of the three major mass production processes of low pressure die casting, customized for the mass production characteristics of aluminum-magnesium alloy castings. They can be adjusted according to customer drawings, working conditions, and batch requirements, and all parameters meet automotive/aerospace industry mass production standards.
| Casting Material | Melting Temperature (°C) | Tensile Strength (MPa) | Hardness (HB) | Adapted Low Pressure Process | Application Scenario |
|---|---|---|---|---|---|
| Aluminum Alloy(A356/A357) | 720-740 | ≥280 | 80-100 | Full Process | Mass Production of Automotive Wheels, Engine Cylinder Heads, New Energy Accessories |
| Aluminum Alloy(6061/6063) | 700-720 | ≥310 | 90-110 | Pressure-Regulated/Differential Pressure | Mass Production of Rail Transit Structural Parts, Aerospace Lightweight Parts |
| Aluminum Alloy(7075) | 730-750 | ≥500 | 150-180 | Differential Pressure Casting | Mass Production of Aerospace Core Components, High-End Hydraulic Accessories |
| Magnesium Alloy(AZ31/AZ91) | 650-680 | ≥200 | 60-80 | Pressure-Regulated/Differential Pressure | Mass Production of New Energy Vehicle Housings, 3C Lightweight Structural Parts |
| Aluminum-Copper Alloy(ZL205A) | 740-760 | ≥350 | 110-130 | Differential Pressure Casting | Mass Production of Aeroengine Accessories, High-End Mold Cores |
LS Manufacturing's engineered low pressure die casting delivers high-integrity aluminum and magnesium components with superior metallurgical properties, combining exceptional dimensional accuracy with production efficiency for automotive, aerospace, and energy applications.
Precision-engineered molds with optimized gating and cooling systems ensure dimensional stability and rapid cycle times for high-volume production.
Advanced casting simulation eliminates defects digitally before production, validating filling patterns and solidification to ensure part quality.
Atmosphere-controlled melting and degassing systems ensure optimal metal fluidity and purity for high-integrity castings.
Controlled gas pressure enables laminar mold filling through precision riser tubes, minimizing turbulence and oxidation.
Maintained pressure during solidification ensures complete feeding to all sections, eliminating shrinkage porosity.
Robotic extraction and transfer systems maintain process consistency and reduce manual handling variations.
Complete secondary operations including trimming, shot blasting, and heat treatment prepare components for immediate use.
Multi-stage validation with CMM inspection and non-destructive testing guarantees compliance with specifications.

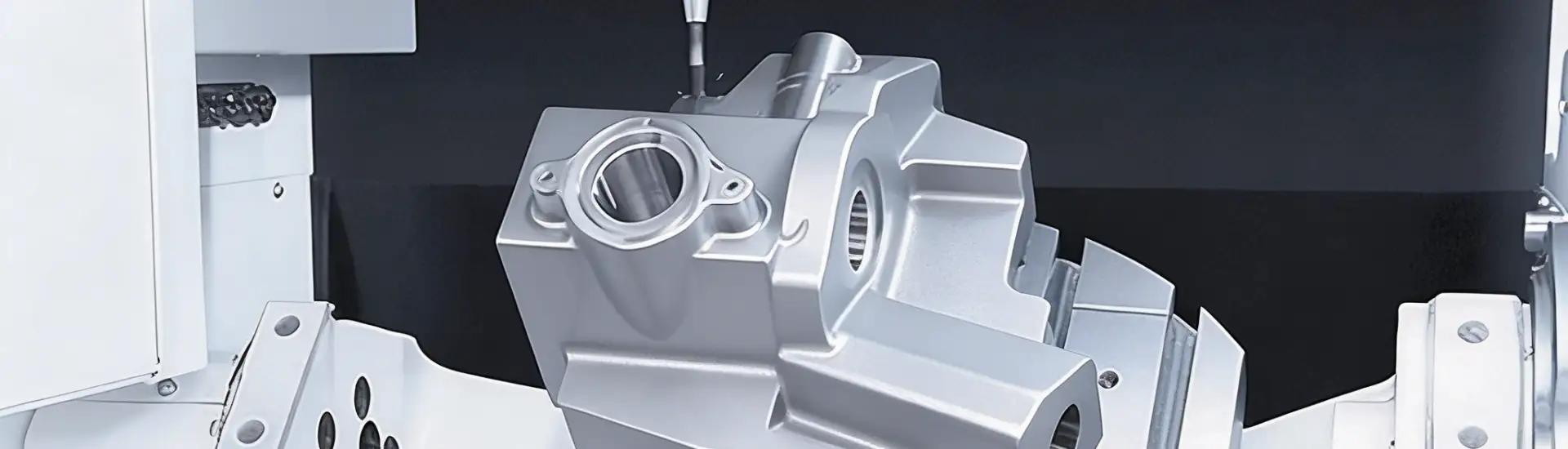

LS Manufacturing provides complete component solutions by combining precision low pressure die casting with dedicated CNC machining services. We optimize manufacturing strategies by determining optimal as-cast geometries and critical machined features, ensuring components meet stringent tolerances and functional requirements while maximizing cost efficiency and shortening lead times.

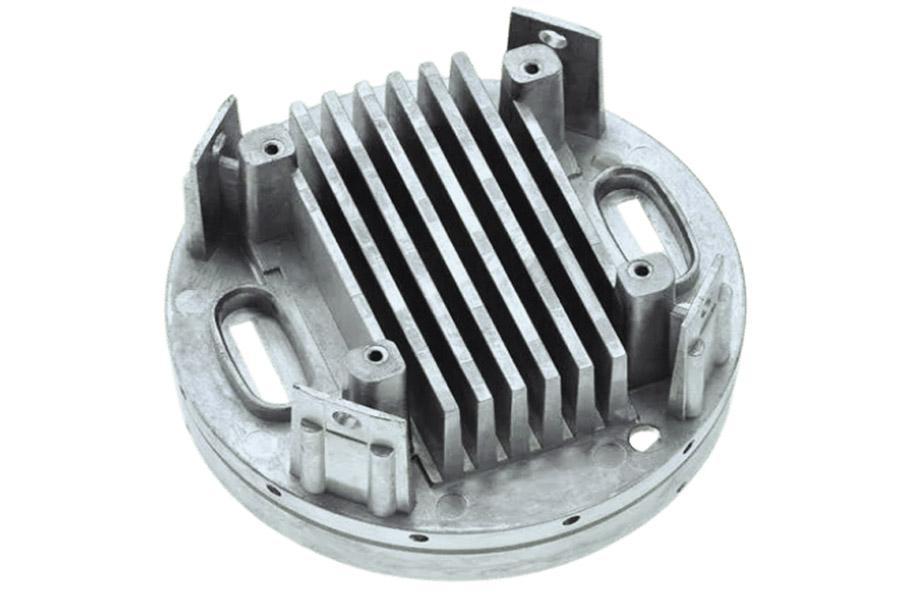

Low pressure die casting utilizes premium-grade hardened tool steels to withstand sustained thermal cycling and pressure. The process is optimized for high-integrity aluminum and magnesium alloys, selected for their excellent castability, mechanical properties, and response to heat treatment. LS Manufacturing supports standard and custom material specifications to meet your precise application requirements.

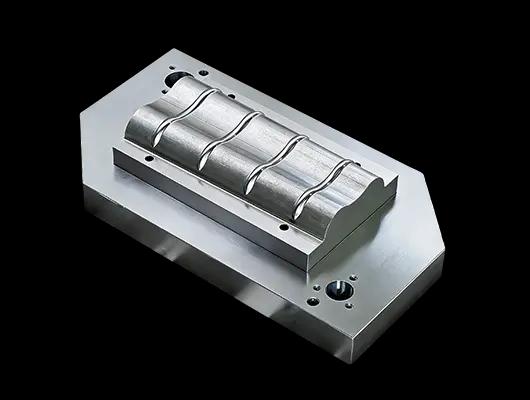

The industry-standard hot-work tool steel, offering an optimal balance of high-temperature strength, toughness, and thermal fatigue resistance. It is engineered for durability and precision in prolonged production of aluminum components, ensuring consistent part quality and extended mold life.

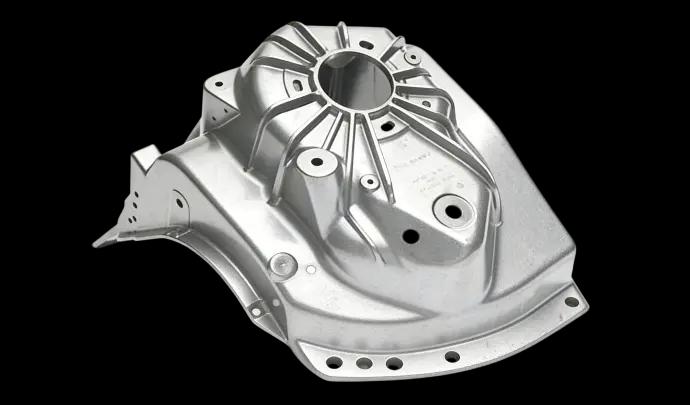

Specially formulated for the low pressure process, these alloys are selected for superior fluidity, low shrinkage, and excellent mechanical properties after heat treatment. They are ideal for producing large, thin-walled, and structurally sound components with high integrity.
Note: Selecting the optimal alloy is critical for part performance, manufacturability, and cost. The decision should be based on required strength, ductility, corrosion resistance, and operating environment. Consult LS Manufacturing engineers for a data-driven material selection tailored to your project's specific needs.
At LS Manufacturing, quality assurance is integrated into every stage of our low pressure die casting process. Our systems are certified to ISO 9001:2015 and IATF 16949, ensuring that your high-integrity components are manufactured with unmatched consistency and reliability for demanding applications.

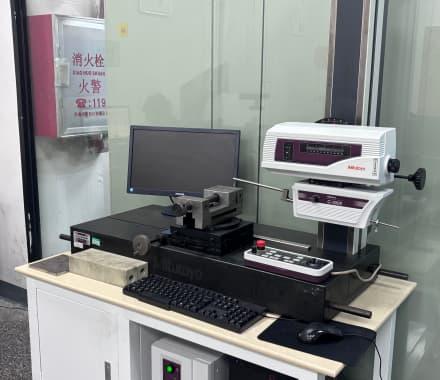

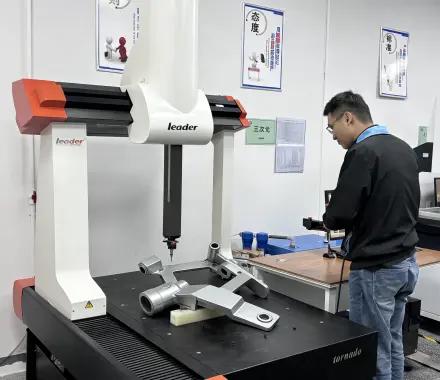

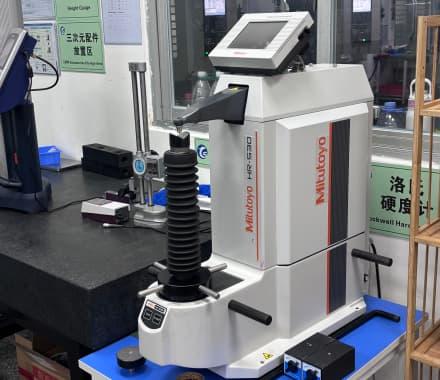

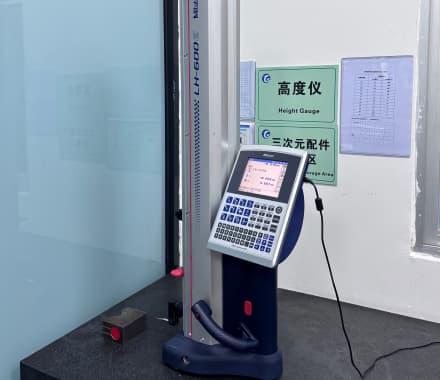

We eliminate dimensional uncertainty with advanced metrology. Our arsenal includes high-accuracy coordinate measuring machines (CMMs) for full geometric validation, spectrometers for instant alloy composition verification, and automated vision systems for surface defect detection. This guarantees every casting matches your CAD model precisely, preventing costly assembly and performance issues.
Your parts undergo a rigorous validation protocol designed to simulate real-world conditions. This includes mechanical property testing, pressure tightness (leak) testing, fatigue analysis, and salt spray corrosion testing. We also employ non-destructive testing (NDT) methods like X-ray inspection to ensure internal soundness, delivering components proven for durability and long-term performance in the field.
We deliver certainty, not just parts. Our process controls yield a first-article inspection pass rate exceeding 95%. In the rare event a component does not meet our stringent standards, we commit to a rapid root-cause analysis and remanufacture at no cost, protecting your project timeline and eliminating the risk of downstream quality failures.
Ready to partner with a supplier built on reliability? Upload your part file for a detailed quote and see our quality commitment in action.
Start Your Low Pressure Die Casting ProjectLS Manufacturing partners with global industry leaders to deliver high-volume, high-integrity low pressure die casting solutions. From automotive to new energy, we specialize in transforming complex production challenges into reliable, cost-effective manufacturing outcomes—ensuring dimensional consistency, structural performance, and supply chain stability at scale.

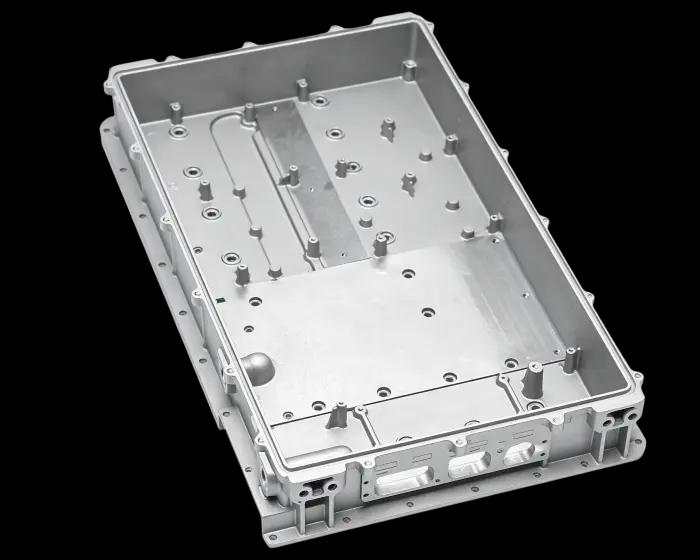

A leading electric vehicle manufacturer required a large, leak-tight aluminum battery tray with zero porosity for thermal management and crash safety compliance. The challenge involved achieving pressure tightness above 15 bar while maintaining dimensional stability under high mechanical loads, with uniform wall thickness for optimal weight distribution.

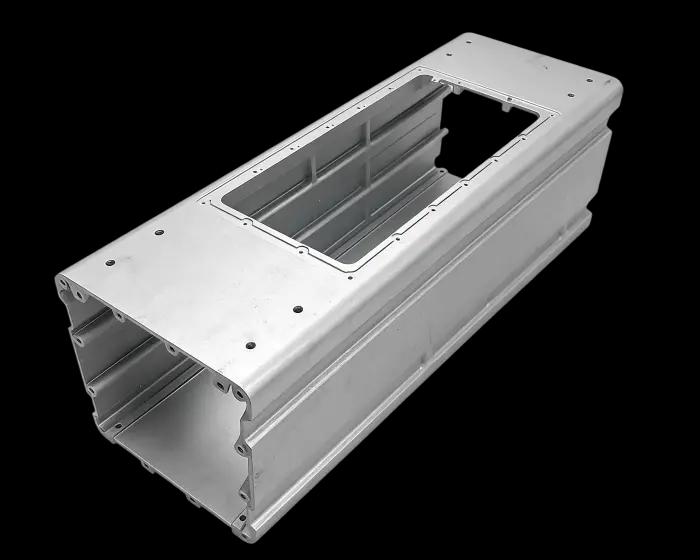

An energy storage systems integrator needed corrosion-resistant, large-size enclosures for grid-scale battery systems requiring compatibility with automated assembly and long-term environmental durability.

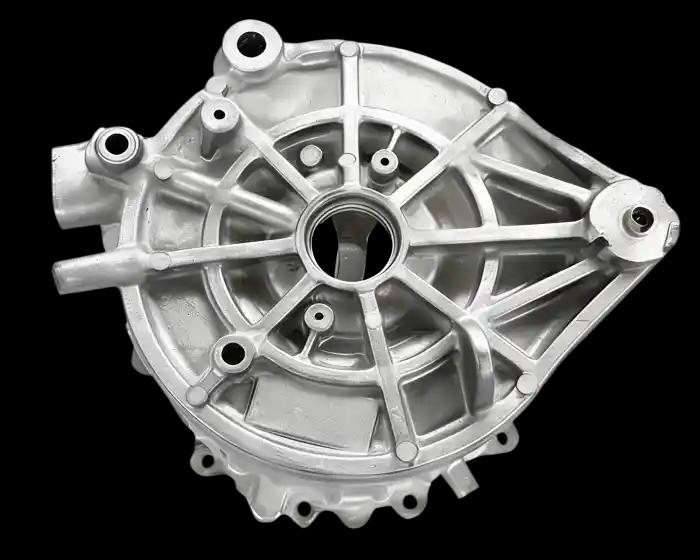

An aerospace components supplier required thin-walled magnesium housings maintaining dimensional stability under thermal cycling in vacuum conditions, with strict weight and RF performance specifications.

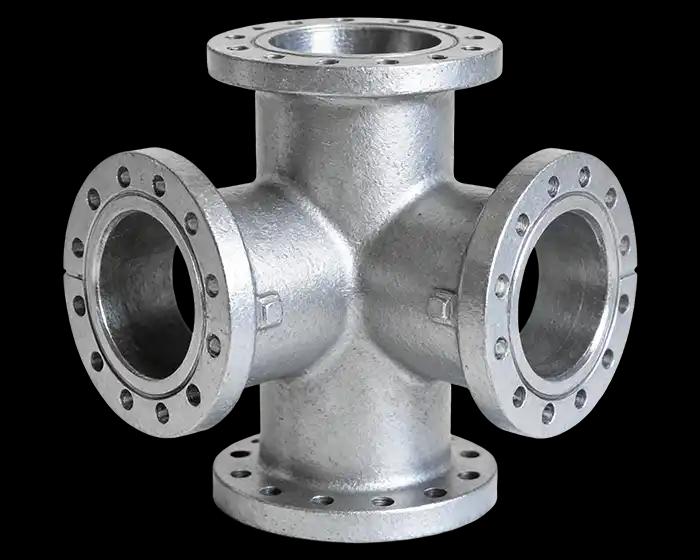

An industrial equipment manufacturer needed pressure-containing components requiring internal passage integrity, wear resistance, and repeatable machining references for high-volume production.

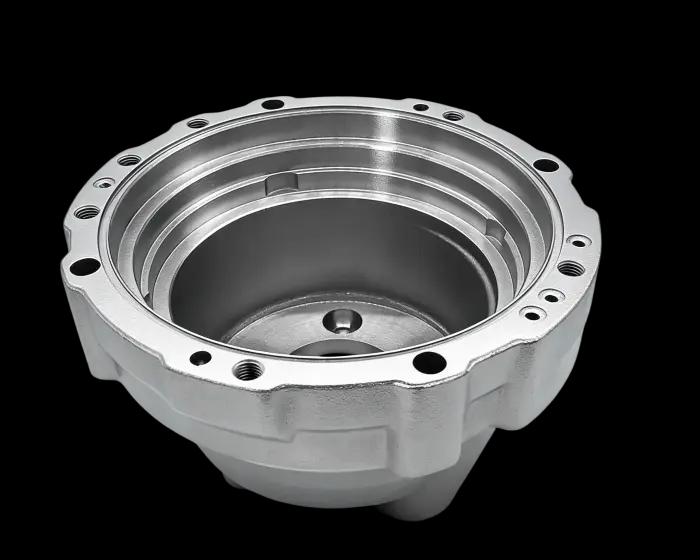

A global compressor manufacturer sought leak-proof aluminum housings with precise bore geometry for scroll compressors, demanding cost control and assembly automation compatibility.
LS Manufacturing delivers advanced low pressure die casting solutions that guarantee part-to-part consistency, supply chain reliability, and optimized production costs for your most demanding manufacturing requirements.

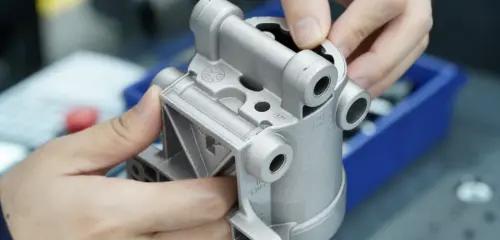

Move beyond simple quoting. Our engineers collaborate with you from concept, providing proactive DFM analysis and process simulation for low pressure casting. We optimize gating, solidification, and tooling design to prevent defects, reduce unit cost, and ensure your component achieves its highest structural performance from the first production run.
Eliminate the variability of high-volume casting. Our IATF 16949 certified process, coupled with automated real-time monitoring and 100% critical dimension checks, ensures batch-to-batch consistency. We deliver certified components with CMM reports, guaranteeing dimensional stability, material integrity, and reliable performance in your assembly—dramatically reducing your incoming inspection and line downtime.
Secure your supply chain with guaranteed output. Our dedicated low pressure casting cells and lean production flow are engineered for scalable volume, from 10,000 to 100,000+ unit orders. We provide firm production schedules and on-time delivery, ensuring your high-volume manufacturing rhythm is never interrupted by supplier delays.

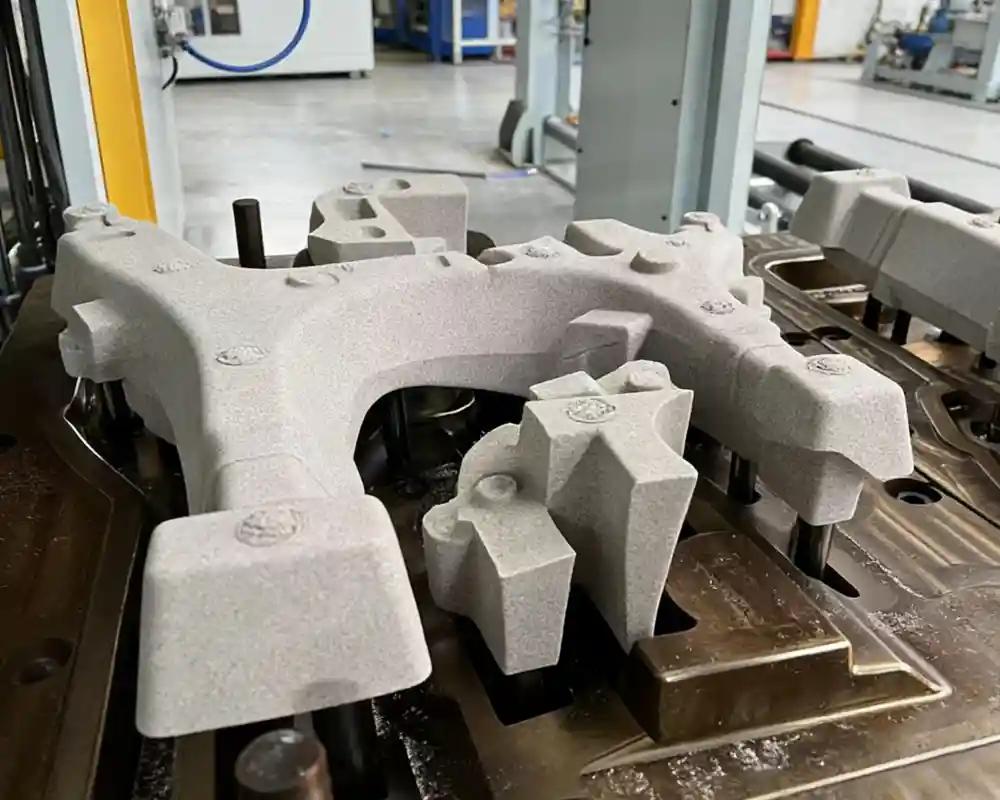

Low pressure die casting delivers distinct manufacturing benefits for producing high-integrity, complex components in volume production environments.
The controlled filling process minimizes turbulence and gas entrapment, yielding components with high density and reliable pressure tightness for leak-critical applications.
Precision forming under consistent conditions achieves tight tolerances and excellent surface quality, reducing machining requirements and ensuring reliable assembly fit.
Excels at producing intricate, thin-walled components with detailed features that challenge conventional manufacturing methods.
Semi-automated process ensures uniform quality from first to thousandth part, supporting just-in-time manufacturing schedules.
Precise metal transfer and controlled solidification maximize material yield while minimizing waste for sustainable production.
Low pressure die casting is ideal for producing high-integrity, thin-walled aluminum and magnesium components with superior dimensional accuracy and pressure tightness for demanding structural applications.
Structural battery trays, subframes, and chassis components requiring lightweight design, leak-proof performance, and crash safety compliance.

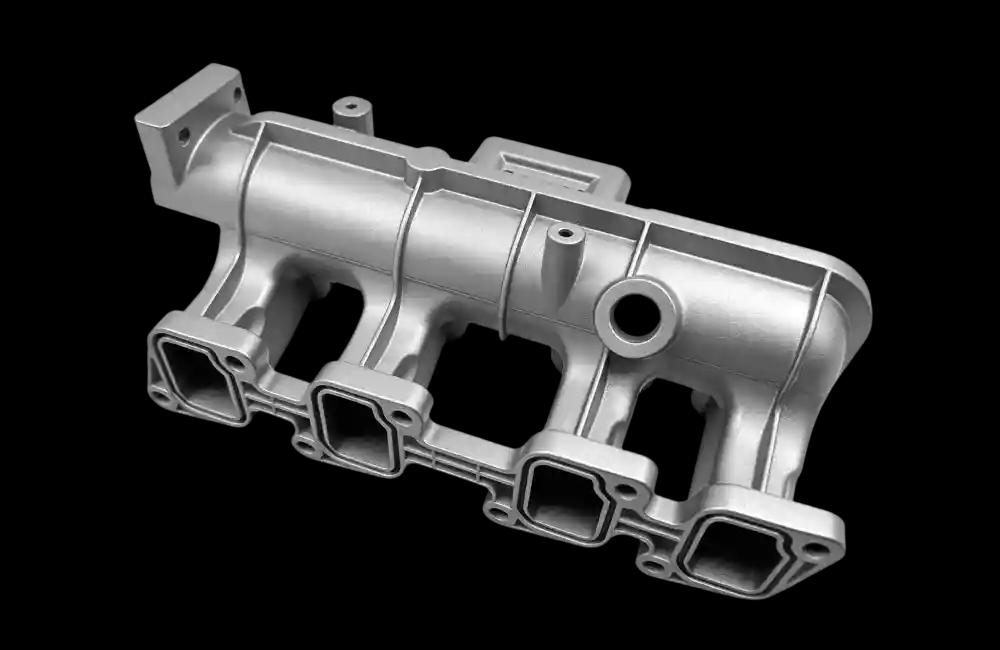

Pump housings, valve bodies, and compressor parts that must withstand high pressure, corrosion, and long-term operational durability.
Engine brackets, structural housings, and interior components demanding high strength-to-weight ratios, thermal stability, and fatigue resistance.
Robotic arm structures, machine bases, and large enclosures needing stiffness, vibration damping, and precise mounting interfaces.
Ship propulsion components, rail structural parts, and heavy-duty housings optimized for strength, corrosion resistance, and weight savings.
Stay updated with the latest news and announcements from LS Manufacturing. Explore our latest articles below.
We initiate every project with comprehensive Design for Manufacturability analysis, optimizing tooling design before commitment. Our molds utilize premium H13 steel hardened to 48-52 HRC, ensuring longevity exceeding 1 million cycles. For qualified high-volume programs, we offer flexible payment options including tooling amortization over production volumes, significantly reducing your initial investment while maintaining the highest quality standards.
Our advanced closed-loop pressure control system maintains ±0.1 bar accuracy throughout the filling and solidification phases. Combined with real-time thermal monitoring and statistical process control tracking, we guarantee dimensional stability within CT6-8 tolerances across production runs exceeding 100,000 components, ensuring reliable batch-to-batch consistency for critical assemblies.
Yes. Our complete vertical integration provides comprehensive secondary services including 5-axis CNC machining, specialized surface treatments (anodizing, powder coating), and full assembly with torque verification. This end-to-end approach delivers validated, ready-to-install components that eliminate your in-house processing requirements and quality validation risks.
We employ modular die architectures that enable efficient modifications typically within 3-5 working days. All engineering changes are managed through our Product Lifecycle Management system, ensuring complete documentation traceability and design integrity throughout the product lifecycle while maintaining cost-effectiveness.
You receive comprehensive certification packages including material certificates meeting EN 10204 3.1 standards, detailed dimensional reports from our CMM systems, and complete process data for full traceability. Our documentation ensures compliance with IATF 16949 requirements and significantly simplifies your quality audit processes.
Our lean, demand-driven production system incorporates real-time scheduling visibility, advanced Kanban systems with safety stock management, and dedicated program management. This integrated approach guarantees 99.7% on-time delivery performance for your assembly line requirements, supported by monthly capacity planning reviews.
We perform detailed technical analysis including mechanical testing, corrosion resistance evaluation, and castability assessment. This enables us to recommend the ideal alloy that meets your specific performance requirements while achieving the lowest total cost, balancing strength, corrosion resistance, and manufacturing efficiency.
The process delivers optimal cost-competitiveness for complex, structural components at production volumes ranging from 5,000 to 100,000+ units annually. In this range, the inherent integrity and yield advantages of low pressure casting effectively offset initial tooling costs, providing superior value compared to alternative manufacturing methods.
We maintain IATF 16949 and ISO 9001 certifications, with processes specifically designed to meet stringent automotive, aerospace, and industrial standards. Our quality management system undergoes regular audits and continuous improvement to ensure consistent compliance with industry-specific requirements.
We implement immediate containment actions, followed by thorough root-cause analysis using 8D methodology, and expedited replacement procedures. This comprehensive approach ensures minimal disruption to your production while implementing effective corrective and preventive actions.
Our controlled, laminar filling process combined with sustained pressure during solidification inherently minimizes porosity formation. This advanced approach typically achieves 99.9% density, often eliminating the need for secondary impregnation while ensuring reliable performance in pressure-tight applications.
Yes. Low pressure casting excels at manufacturing large, complex enclosures and frames up to 1.5m × 1m with uniform wall thicknesses of 3-4mm. Our optimized gating and cooling designs maintain ±0.2mm dimensional stability, ensuring high structural integrity for demanding applications across multiple industries.
