Custom Aluminum Extrusion Services

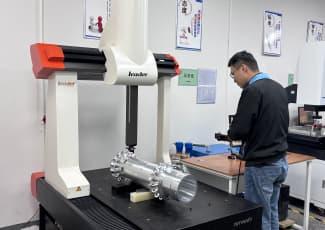

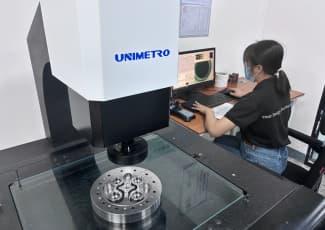

Our tolerance control follows ISO 9001+AS9100 dual-certified standards: critical dimension tolerances can reach ±0.02mm, and regular dimension tolerances are stably within ±0.05mm. High-precision tolerances require supporting precision molds and full inspection processes, which increase production investment; we will match the optimal tolerance scheme for you based on your actual assembly needs to avoid unnecessary precision costs.

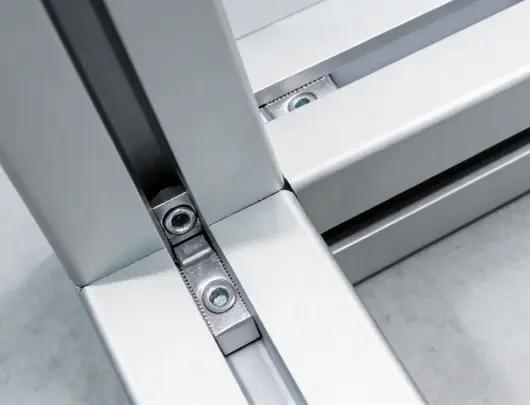

We offer steel profile mechanical connection solutions: non-welding fastening via corner brackets, metal screws, or specialized mechanical connectors/clamps, suitable for high-end equipment frame requirements. In addition, combined solutions of mechanical fasteners and structural adhesives can also replace welding; steel profiles have higher strength but slightly higher assembly complexity, while aluminum extrusions still have core advantages in assembly convenience.

Wall thickness determination requires comprehensive professional considerations: • Alloy Grade: Soft alloys need increased wall thickness to ensure strength, while high-strength alloys can adapt to thin-wall designs • Profile Design: Structures with deep channels, curves, or unsupported spans require thicker walls to improve stability • Press Capacity: The tonnage and size of extrusion equipment limit the forming limit of cross-sections • Surface Finishing: Anodizing or coating processes may require minimum wall thickness to avoid deformation • Dimensional Tolerance: Strict tolerance limits usually require increasing wall thickness to ensure processing consistency We will balance strength, weight, and cost optimally during the design phase.

The typical recommended wall thickness is 1.0mm-3.0mm: • Structural or load-bearing parts: Wall thickness ≥2.0mm is recommended to ensure strength and rigidity • Lightweight or decorative parts: Wall thickness ≈1.0mm is sufficient The minimum feasible wall thickness is limited by alloy, cross-section complexity, and equipment capacity; the final choice needs to balance mechanical requirements, weight, and cost based on the actual application scenario.

We provide high-precision prototyping and small-batch trial production services, which can produce sample parts for testing and verification before mass production. Prototyping services can help you: • Verify fit and function before committing to large quantities • Confirm that dimensions and tolerances meet technical requirements • Evaluate surface finishes and material properties • Optimize design solutions early in development to reduce later risks.

Costs are determined by core factors: • Material Type: Different aluminum alloy grades have significant cost differences; common alloys like 6061/6063 are cheaper than specialty metals • Part Size: Larger profiles require more material and larger tonnage equipment, resulting in higher costs • Design Complexity: Complex cross-sections require custom precision molds, and tight tolerances increase inspection and processing time • Other Factors Affecting Price: Order volume (larger orders have lower unit costs), surface finish type, tooling and die costs for new profiles You can provide drawings and specifications, and we will give you an accurate quote based on your actual needs.

Cost control can be effectively achieved through professional design and planning: • Optimize Structural Design: Keep wall thickness uniform (variable wall thickness increases mold cost), use rounded corners instead of sharp angles, design symmetrically as much as possible, and avoid deep narrow channels and other difficult-to-form structures • Choose Standard Materials: Prioritize standard alloys like 6061/6063 over specialty metals • Plan Orders Reasonably: Increase order volume to spread tooling costs, and only choose tight tolerances when necessary • Simplify Surface Finishing: Prioritize standardized surface processes and consider reusing existing die profiles • Lock Design Early: Changing designs after mold completion will significantly increase costs; we recommend collaborating with us early in the design phase to identify risks in advance.

Aluminum extrusions are 100% recyclable in a closed loop without losing strength or quality. The carbon emissions of recycled aluminum are only 5% of primary aluminum, which can significantly reduce the carbon footprint; our recycling system supports multiple cycles, meeting environmental needs while ensuring stable product performance.

Core die types include: • Solid Dies: Used for simple solid profiles without hollow sections or internal cavities, with the lowest cost and highest efficiency • Hollow Dies: Used for profiles with enclosed hollow sections or tubes, requiring mandrels to form internal cavities, with higher complexity and cost • Semi-Hollow Dies: Used for profiles with partially enclosed sections (e.g., C-channels, slotted angles), with complexity and cost between solid and hollow dies We will match the optimal die solution based on your cross-section requirements.

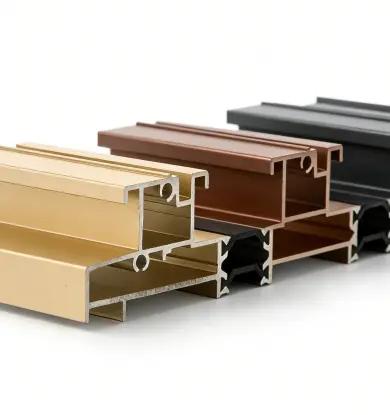

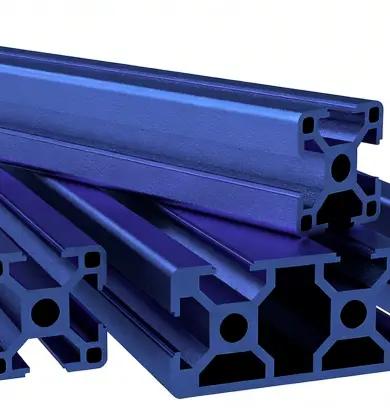

We offer a full range of precision T-slot profiles with standard sizes including: 10×10mm, 20×20mm, 30×30mm, 40×40mm, 45×45mm, 50×50mm, 60×60mm, 80×80mm, 100×100mm, 160×160mm. These sizes are suitable for high-end rack and assembly scenarios, and different applications can select corresponding specifications according to structural needs.

Lead time depends on the project type: • Prototyping/Small Batch: 3-5 days (including rapid mold development and trial production) • Mass Production: 7-15 days (including mold verification and stable production) • Complex custom projects: Need to be evaluated based on mold development cycle, and we will provide an accurate delivery schedule.

We provide customized post-processing solutions: • Aging Strengthening: Improve alloy strength and hardness, suitable for high-strength scenarios such as aerospace and military • Ultra-Fine Surface Treatment: Achieve a surface finish of Ra≤0.8μm, meeting the dust-free requirements of semiconductor equipment • Special Coating: Increase corrosion resistance or insulation, suitable for harsh working conditions We will match the optimal post-processing process based on your performance needs.
