LS Manufacturing delivers precision high pressure die casting solutions engineered for high-volume production of complex components requiring superior dimensional accuracy and rapid cycle times.
Get an instant quote today.
Get instant pricing, project lead times, and DFM feedback
STEP | STP | SLDPRT | STL | OBJ | 3MF | IGES | X_T | X_B | PRT | SAT | JT files
File size: 15MB
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
At LS Manufacturing, our customers' trust is earned through 15+ years of expertise, ensuring ±0.5% dimensional accuracy and quality across 12,000+ projects, as demonstrated by ISO 9001:2015 certification and 99.80% on-time delivery.
High Pressure Die Casting is a high-volume manufacturing process that produces complex, thin-walled metal parts with exceptional dimensional accuracy, superior surface finish, and rapid cycle times. Molten metal is injected under intense pressure into a precision steel die, enabling the mass production of components that combine lightweight design with structural integrity.
At LS Manufacturing, we specialize in aluminum and magnesium high pressure die casting for industries requiring reliable, high-volume output. Our process directly addresses critical production challenges: achieving part-to-part consistency in complex geometries, minimizing secondary machining, and reducing total unit cost—all while maintaining the tight tolerances and cosmetic finishes demanded by automotive, consumer electronics, and industrial applications.

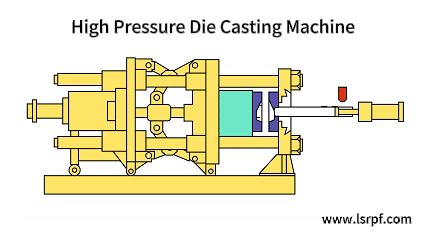

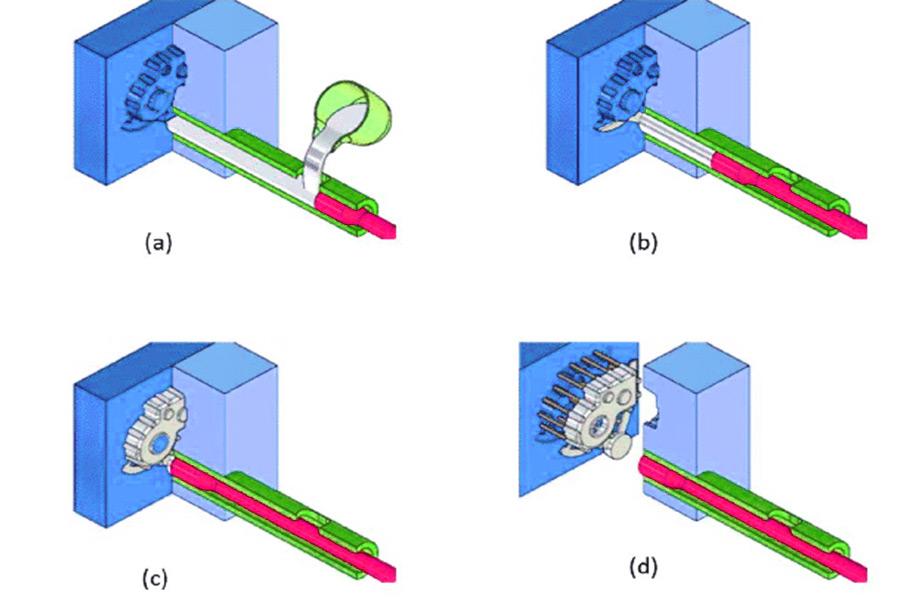

High pressure die casting injects molten metal into a reusable steel mold under high pressure, ideal for mass-producing complex, thin-walled parts with high precision and strength.
At LS Manufacturing, we engineer the process for reliability and scale. Using precision-machined, temperature-controlled dies, we inject aluminum, magnesium, or zinc alloys at pressures of 600–1200 bar. This ensures complete filling of fine details before rapid solidification. Through controlled parameters—injection speed, pressure, and thermal management—and advanced simulation, we minimize defects and ensure consistent quality.
This approach tackles key production challenges: high throughput, consistency, and cost efficiency. It delivers lightweight, high-strength components with the accuracy and finish required for direct assembly. Partner with LS for high pressure die casting built for volume, precision, and reliability.
At LS Manufacturing, we deploy three specialized high pressure die casting processes to meet high-volume manufacturing demands, delivering consistent quality, cost efficiency, and production scalability for industrial applications.
Ideal for zinc alloy and magnesium components, this process immerses the injection system in molten metal, enabling rapid cycling and exceptional efficiency. It is perfectly suited for mass production of small, complex parts such as connectors, housings, and hardware in consumer electronics, automotive interiors, and locking systems, ensuring high repeatability and minimal downtime.
Engineered for aluminum and other high melting-point alloys, this method separates the injection chamber from the molten metal source, providing superior thermal stability and process control. It supports the production of medium to large structural components with enhanced integrity, making it a preferred solution for automotive transmissions, machinery housings, and power tool bodies in continuous production environments.
Utilizing semi-solid slurry injection, this advanced technique reduces gas entrapment and porosity while improving mechanical properties and enabling heat treatment. It is the optimal choice for high-performance, thin-walled parts requiring exceptional strength and pressure tightness, widely adopted in electric vehicle battery trays, structural body parts, and premium automotive and aerospace applications.
The following are the core technical parameters of the three major mass production processes of high pressure casting, customized for the mass production characteristics of zinc-aluminum-copper alloy castings. They can be adjusted according to customer drawings, working conditions, and batch requirements, and all parameters meet industry mass production standards.
| Casting Material | Melting Temperature(℃) | Tensile Strength(MPa) | Hardness (HB) | Adapted High Pressure Process | Application Scenario |
|---|---|---|---|---|---|
| Die-Casting Zinc Alloy(Zamak3/Zamak5) | 420-450 | ≥280 | 80-90 | Hot Chamber Casting | Mass Production of 3C Electronic Enclosures, Toy Parts, Hardware Small Parts |
| Die-Casting Aluminum Alloy(ADC12/A380) | 680-720 | ≥220 | 60-80 | Cold Chamber/Semi-Solid | Mass Production of Automotive Components, Smart Home, Hardware & Sanitary Ware |
| Die-Casting Copper Alloy(Hpb59-1) | 1100-1150 | ≥300 | 90-110 | Cold Chamber Casting | Mass Production of Industrial Accessories, Hydraulic Valve Bodies, Conductive Components |
| High-End Aluminum Alloy(6061/7075) | 700-730 | ≥350 | 100-120 | Semi-Solid Casting | Mass Production of New Energy Vehicle Core Components, High-End 3C Accessories |

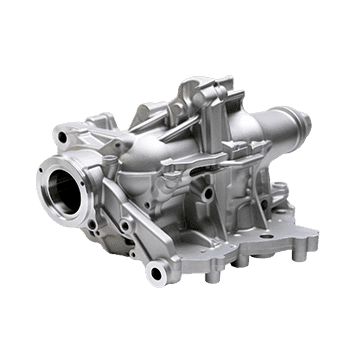

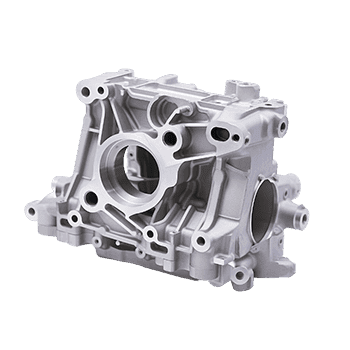

LS Manufacturing's high pressure die casting delivers complex, thin-walled components with exceptional accuracy and surface quality. Our engineered process supports high-volume production of aluminum, magnesium, and zinc alloy parts, solving critical manufacturing challenges in automotive, consumer electronics, and industrial applications where precision, speed, and cost-efficiency are paramount.
Customer CAD models undergo rigorous simulation analysis for fill pattern and solidification. Multi-cavity tool steel dies with conformal cooling ensure dimensional stability and extended tool life.
Advanced flow simulation defines optimal injection parameters, eliminating defects virtually before production begins. This reduces development time and ensures high-yield manufacturing.
Certified alloys are melted in controlled atmospheres and automatically metered into shot sleeves, ensuring consistent metallurgy and temperature for each production cycle.
Hydraulic plungers inject molten metal at 30-100 m/s and 600-1200+ bar pressure, completely filling intricate geometries before solidification initiates.
Intensification pressure maintains material density during solidification, creating pore-free microstructures essential for strength and pressure tightness.
Robotic systems extract castings with precision, maintaining process consistency and enabling lights-out manufacturing capabilities.
Automated trimming, deburring, and heat treatment processes deliver components ready for assembly or further machining operations.
Multi-stage validation includes in-line inspection, CMM verification, and non-destructive testing to guarantee all specifications are met.
LS Manufacturing delivers end-to-end component production by integrating precision high pressure die casting with advanced CNC machining. This seamless approach ensures parts meet your most stringent tolerances and performance requirements, while streamlining your supply chain and reducing time-to-market.
Our vertically integrated process reduces lead times by 30-40% and guarantees dimensional consistency from casting to finished component. We eliminate multi-vendor management risks, ensuring unmatched quality, reliability, and accountability for your critical applications.

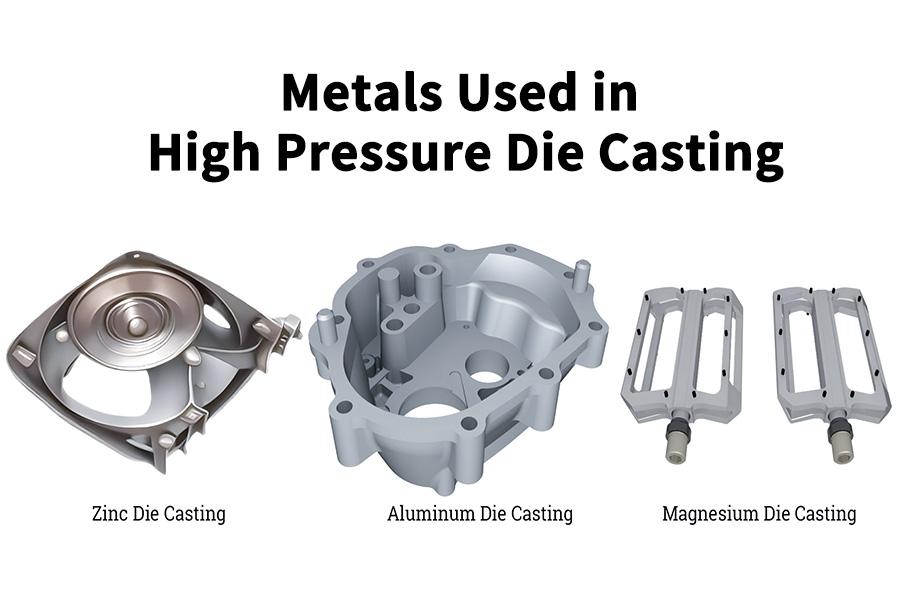

High pressure die casting employs premium hardened tool steels to withstand extreme thermal cycling and injection pressures. The process is optimized for aluminum, magnesium, and zinc alloys selected for superior fluidity, fast solidification, and excellent mechanical properties. LS Manufacturing supports industry-standard and custom materials to meet demanding performance and production requirements.
The industry standard for high-pressure aluminum and magnesium casting dies. It provides an optimal balance of high-temperature strength, toughness, and thermal fatigue resistance, ensuring extended mold life and consistent part quality under rapid cycling.
Engineered for high fluidity and rapid solidification, enabling the production of thin-walled, complex components with excellent strength-to-weight ratios and thermal conductivity.
Material selection directly impacts part performance, manufacturability, and cost. The optimal alloy depends on your specific requirements for mechanical properties, corrosion resistance, weight, and production volume. For a data-driven recommendation that balances performance with cost, contact LS Manufacturing engineers.
At LS Manufacturing, quality assurance is integrated into every stage of our high pressure die casting process. Our systems are certified to IATF 16949 and ISO 9001, ensuring that your high-volume production components are manufactured with exceptional consistency and reliability for demanding automotive, aerospace, and industrial applications.
We eliminate dimensional variation with advanced metrology systems. Our capabilities include high-speed CMMs for complex geometry validation, spectrometers for real-time alloy verification, and automated vision systems for defect detection. This ensures every high-pressure cast component maintains precise conformity to your design specifications.
Your components undergo rigorous validation testing including mechanical property verification, pressure tightness certification, fatigue analysis, and corrosion resistance testing. We employ advanced NDT methods such as X-ray and CT scanning to guarantee internal integrity for safety-critical applications.
We deliver manufacturing certainty through controlled processes achieving over 98% first-article acceptance rates. Our zero-defect commitment includes immediate root cause analysis and expedited replacement for any non-conformance, ensuring uninterrupted production and supply chain security for your high-volume requirements.
Upload your part design to receive a detailed quality plan and experience the LS Manufacturing difference in high pressure die casting excellence.
LS Manufacturing collaborates with global industry leaders to deliver precision high pressure die casting solutions for high-volume production. From automotive to aerospace, we transform complex manufacturing challenges into reliable, cost-effective outcomes—ensuring dimensional accuracy, structural integrity, and supply chain efficiency at scale.
A leading automotive manufacturer required a complex, thin-walled aluminum transmission housing to replace a multi-part assembly. The challenge involved achieving pressure tightness above 25 bar while maintaining dimensional stability under high thermal loads, with zero porosity in critical sealing areas.
A consumer electronics company needed a lightweight, high-strength magnesium enclosure with superior EMI shielding properties. The design required uniform wall thickness under 0.8mm and perfect surface finish for cosmetic applications.
An aerospace systems integrator required a series of aluminum housings for satellite communication modules demanding exceptional strength-to-weight ratio and thermal stability in vacuum conditions.
An industrial equipment manufacturer needed high-pressure pump housings capable of withstanding 500+ bar operating pressure while maintaining precise internal passage geometry.
An energy infrastructure provider required corrosion-resistant, pressure-tight valve bodies for extreme temperature applications, demanding compliance with ASTM A216 standards.
LS Manufacturing delivers precision high pressure die casting services engineered for large-scale manufacturing, combining rigorous quality control, scalable production capacity, and adaptable solutions to meet your most demanding batch production requirements.
Our IATF 16949 certified manufacturing system ensures exceptional dimensional stability and consistent quality across high-volume production runs. Advanced automated inspection systems and real-time monitoring guarantee batch-to-batch consistency, delivering components that meet the most stringent automotive and industrial standards.
With strategically designed high pressure die casting cells and lean production flow, we ensure responsive capacity allocation and on-time delivery for orders from prototype to mass production. Our scalable infrastructure seamlessly adapts to your production schedules and volume fluctuations.
Modular process design and rapid mold change capabilities enable efficient adaptation to varying production requirements. We support everything from low-volume, high-mix projects to full-scale mass production, serving multiple industry sectors including automotive, consumer electronics, and industrial equipment.
Engineered for high-volume production, we deliver exceptional efficiency, repeatable precision, and process automation to provide reliable die casting solutions for diverse industrial applications.
Cycle times of 10-60 seconds per mold enable 24/7 automated production, with monthly capacities from 100,000 to 500,000 units. This scalable throughput significantly reduces per-part cost and accelerates time-to-market.
Achieve casting accuracy levels of CT4-CT6, with dimensional tolerances held within ±0.05mm and surface finishes of Ra1.6-6.3μm. Batch-to-batch variation is controlled within ≤0.02mm, ensuring reliable fit and performance in final assembly.
High-pressure, high-speed filling enables the production of complex thin-walled components from 1.5mm. Integrated die casting consolidates multiple parts, reducing assembly steps by over 30% and lowering total component weight and cost.
Process a full range of zinc, aluminum, and copper alloys. Our precise thermal management prevents oxidation and ensures material integrity, supporting performance-driven specifications across industries.
End-to-end automated lines, from melting to trimming, operate without manual intervention. Real-time process monitoring ensures consistency rates exceed 99%, virtually eliminating defects and ensuring lot-to-lot uniformity.
High pressure die casting is engineered for high-volume production of complex, thin-walled components with exceptional dimensional repeatability, superior surface finish, and high strength-to-weight ratios. LS Manufacturing delivers precision solutions that address critical challenges in cost, speed, and performance for mass production.
Engine blocks, transmission cases, and structural body parts requiring tight tolerances, high integrity, and cost efficiency for high-volume manufacturing.
Pump housings, valve bodies, and gearbox components that must withstand wear, pressure, and harsh environments while maintaining production consistency.
Device enclosures, heat sinks, and internal frames demanding thin walls, EMI shielding, excellent cosmetic finish, and rapid production scalability.
Lightweight brackets, avionics housings, and instrumentation components requiring precision, reliability, and performance under demanding operating conditions.
Durable housings, motor end-frames, and structural parts designed for impact resistance, thermal management, and long-term reliability in consumer and industrial applications.
Stay updated with the latest news and announcements from LS Manufacturing. Explore our latest articles below.
A fully automated sensing and monitoring system is adopted to adjust and control key production parameters in real time. Combined with a strict mass production quality control system, the dimensions and performance of each batch of products are ensured to be highly consistent.
It is compatible with a variety of mainstream die casting alloy materials. Through precise temperature control and process optimization, it effectively solves the forming pain points of different alloys, adapting to multi-industry mass production needs.
By optimizing the production process and intelligently recycling production auxiliary materials, material loss and production energy consumption are effectively reduced. Combined with the characteristics of large-scale production, the unit production cost is further controlled.
Yes. Through modular process design and rapid mold change technology, it can flexibly switch between multi-variety production, balancing production efficiency and product diversity, adapting to various multi-category mass production needs.
It follows internationally accepted mass production quality control standards, and establishes a full-process testing mechanism from raw material incoming to finished product delivery, comprehensively ensuring the stable quality of mass-produced products.
The production line has a high degree of automation. The core processes from metal melting to casting cleaning are fully unattended, reducing human error and improving production stability and standardization.
High-quality mold materials and professional surface strengthening treatment are adopted, combined with regular mold maintenance and process optimization, to effectively extend the service life of molds and ensure the continuity of mass production.
It is widely applicable to various industries requiring product consistency and production stability, providing efficient and stable mass production supporting services, adapting to various batch production scenarios.
Professional environmental protection treatment equipment is equipped to standardize the treatment of waste gas and residue generated in the production process. Environmentally friendly production auxiliary materials are adopted, which meet national environmental protection production standards.
It provides full-life-cycle quality traceability services for bulk products. For problems arising in the mass production process, it provides rapid response and process optimization solutions to ensure production continuity.
