Insert molding is a common manufacturing processthat frequently appears in our daily lives. From the smartphones that everyone has in their hands to the electrical components that ensure the power supply of their homes, many daily necessities are manufactured with the help of insert molding technology. A major feature of this process is that it allows manufacturers to seamlessly combine plastic and metal parts to create components that are both strong and durable. This article aims to explore this key technology of insert molding in depth, revealing the principles behind it, its application areas, advantages and challenges, and its important position in modern manufacturing.

What is insert molding？

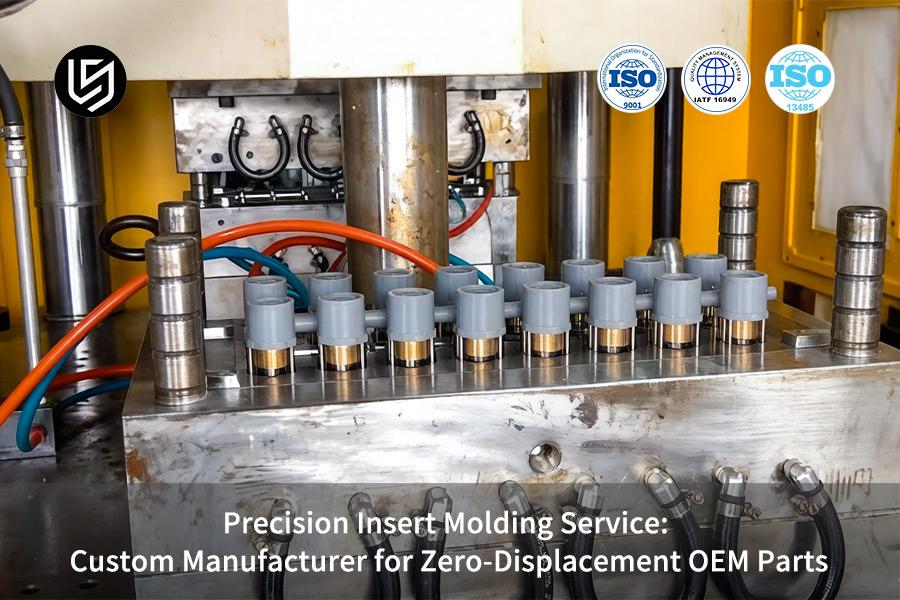

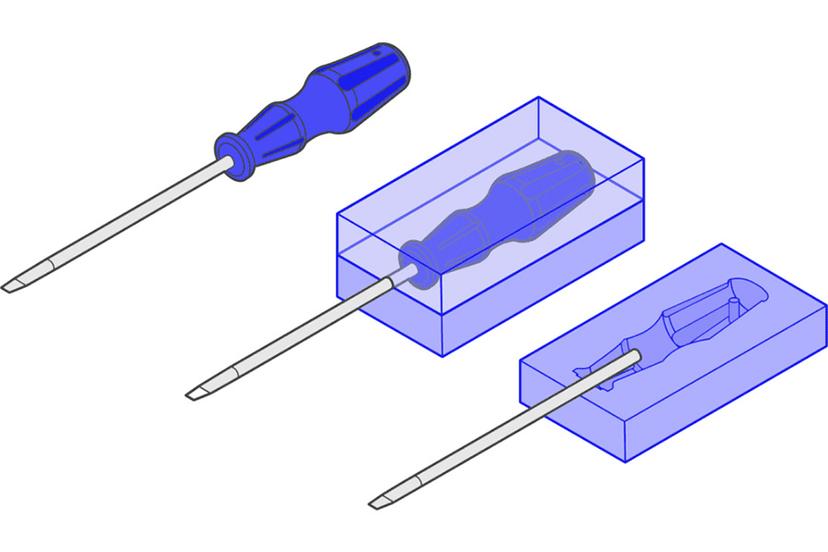

Insert moldingis a manufacturing technology that inserts pre-made metal, plastic or other material parts (called inserts) into the mold cavity during the plastic injection molding process, and then melts and combines with the plastic to form an integrated product. This technology combines the advantages of different materials, such as the strength, conductivity or heat resistance of metals with the lightweight, molding flexibility and cost-effectiveness of plastics, thereby creating a composite product with unique performance and functional characteristics.

How does insert molding work step by step?

Theinsert molding processis somewhat similar to traditional injection molding in that they both involve injecting molten plastic into the mold. However, plastic insert molding also requires the insert to be placed in the mold as the plastic flows into the mold cavity. The following is an overview of the main steps of theplastic insert molding process.

Step 1: Loading the Insert into the Mold

During themold designstage, it is important to fully consider the positioning of the insert in the mold, which can effectively ensure that the insert maintains the intended orientation and position during the molding process. The installation of the insert can be achieved in two main ways: automated insertion and manual insertion.

①Automatic Insertion
Automatic insertion is known for its high precision, consistency and efficiency. The process relies on high-temperature resistant robots or automated devices to accurately place the inserts in the mold. Thanks to the rapid operation of computerized equipment, manufacturers often enjoy shorter turnaround cycles because more parts can be molded per hour.
②Manual Insertion
In contrast, manual insertion is more suitable for small-scale injection molding operations. It requires operators to put the insert components into the mold by hand. This process is more common due to the full participation of operators, who are responsible for carefully checking, packaging and assembling injection mold components, thereby helping to control additional costs. However, manual insertion may be slightly lacking in accuracy and repeatability.

Step 2: Plastic melt is injected into the mold under high pressure

In the insert molding process, molten plastic is injected into the mold under high pressure. This process ensures that the plastic can flow evenly around the insert when filling the mold cavity, forming a tightly bonded component.

Step 3: Mold opening and molded part removal

After the plastic has completely cooled and solidified, the mold is opened. The removal operation of insert injection molding can be manual or automatic, depending on the equipment used. After the molded part and the insert are tightly bonded, it needs to be carefully separated from the mold.

Step 4: Gate Separation

During the molding process, the extra plastic material (called runners or gates) created by injection needs to be removed. This is usually done by cutting or trimming it away from the desired molded part. Gate separation is an integral step in insert molding, ensuring the cleanliness and precision of the final product.

Step 5: Post-processing

Depending on the specific needs of the product, post-processing may be required. This may include surface treatment, quality inspection, or additional processing steps to ensure that the component meets established standards and requirements.

What are the advantages of insert molding?

Insert molding offers a myriad of advantages that contribute to its widespread adoption in various manufacturing processes. These advantages not only enhance the efficiency of production but also result in high-quality components with improved structural integrity. Let’s delve into the details of the key advantages of insert molding:

1. Cost Efficiency:

• Labor and Assembly Savings:One of the primary advantages of insert molding is the reduction in labor and assembly costs. By integrating multiple manufacturing steps into a single process, it minimizes the need for additional assembly steps, leading to cost savings.
• Material Efficiency:The process minimizes material waste by precisely encapsulating inserts within the molding material. This efficiency in material usage contributes to overall cost-effectiveness.

2. Enhanced Component Strength:

• Reinforcement:Inserts, which can be made of metals or plastics, serve to reinforce specific areas within the molded part. This reinforcement enhances the overall strength and durability of the component, making it suitable for applications with high mechanical stresses.

3. Design Flexibility:

• Complex Geometries:Insert molding allows for the creation of components with complex geometries and intricate designs. This versatility is particularly valuable in industries where components need to meet specific design requirements, offering designers greater flexibility in realizing their visions.
• Multi-Material Components:The process enables the molding of components with multiple materials, allowing for the incorporation of various material properties into a single part. This is advantageous when specific areas of the component require different characteristics.

4. Reduced Assembly Time:

• Streamlined Production:Insert molding streamlines the production process by combining multiple steps into one. This reduction in the number of assembly steps results in faster production cycles, contributing to quicker turnaround times for manufactured components.

5. Improved Product Quality:

• Precision and Consistency:The precision of insert molding ensures consistent and repeatable results. The process provides tight control over the molding parameters, reducing the likelihood of defects and variations in the final product.
• Elimination of Secondary Operations:As inserts are encapsulated during the molding process, the need for additional secondary operations is minimized. This elimination of extra steps further contributes to maintaining high product quality.

These advantages collectively position insert molding as a robust and efficient manufacturing process. From cost savings to design flexibility and enhanced component strength, insert molding addresses various manufacturing challenges, making it a preferred choice for industries seeking high-quality, customized components.

Manufacturers embracing insert molding can leverage these advantages to stay competitive and meet the demands of an ever-evolving market.

What are the disadvantages of insert molding?

While insert molding has many advantages, there are also some potential disadvantages.

Design Complexity

While insert molding offers a great deal of design freedom, mold design is also complex. Precision engineering and advanced mold manufacturing techniques are required to ensure proper placement and alignment of the insert, making the process extremely challenging.

Material Compatibility Issues

Of paramount importance in the insert molding process is the compatibility between the molten plastic and the insert material. When the materials are mismatched, it can lead to poor adhesion, internal strain, and ultimately part failure. Material compatibility is a major consideration during the insert molding process. However, to avoid these pitfalls, thoughtful material selection and testing is essential.

What are the applications of insert molding?

Insert molding technology has a wide range of applications in many industries due to its flexibility and versatility:

1. Automotive Components:

• Connectors and Terminals:Insert molding is widely used in the automotive industry for manufacturing connectors and terminals. The process ensures precise encapsulation of metal inserts, providing robust electrical connections.
• Interior Components:Components such as dashboard switches, knobs, and handles often involve intricate designs and benefit from the structural reinforcement that insert molding provides.

2. Electronics and Electrical Devices:

• Sensor Housings:In electronic devices, insert molding is employed to create sensor housings. This application requires the precise encapsulation of delicate sensors within a protective molding material.
• Cable Assemblies:The process is used to encapsulate cable assemblies, offering strain relief and protection for delicate wires and connectors.

3. Medical Devices:

• Surgical Instruments:Insert molding is crucial in the production of surgical instruments where precision and cleanliness are paramount. The process allows for the creation of intricate, sterile components for medical applications.
• Disposable Devices:Components for disposable medical devices, such as diagnostic tools or drug delivery systems, often involve insert molding to ensure a reliable and hygienic end product.

4. Consumer Goods:

• Power Tool Handles:The ergonomic design and durability required for power tool handles make insert molding an ideal choice. The process allows for the integration of metal reinforcements, improving the overall strength of the handle.
• Appliance Components:Components in household appliances, like buttons and handles, benefit from insert molding for its ability to combine different materials and create parts with varying properties.

5. Industrial Equipment:

• Machine Components:In the manufacturing of industrial equipment, insert molding is utilized for creating precision components such as gears, bearings, and handles.
• Control Panels:Components of control panels, where a combination of materials and precise molding is often required, can be efficiently produced through insert molding.

6. Telecommunications Devices:

• Connectors and Housings:Telecommunications devices, such as routers and modems, often require components with intricate designs and precise dimensions. Insert molding ensures the creation of such components with the necessary structural integrity.

7. Aerospace Components:

• Avionics Parts:Insert molding is employed in the aerospace industry to manufacture avionics parts with complex designs and high precision requirements.
• Lightweight Components:The ability to combine materials with varying properties makes insert molding valuable for creating lightweight yet durable components used in aerospace applications.

8. Sporting Goods:

• Equipment Handles:Sporting goods, such as bicycle handles or golf club grips, benefit from the ergonomic design and enhanced grip provided by insert molding.
• Protective Gear Components:Components of protective gear, like helmet liners, can be manufactured with a combination of materials for optimal performance and safety.

These applications highlight the versatility of insert molding across a wide range of industries, showcasing its ability to meet the specific demands of each sector. As technology and materials continue to advance, the applications of insert molding are likely to expand further, contributing to innovative solutions in various fields.

What is the difference between insert molding and overmolding?

The two processes are similar. However, there are many differences that you must be aware of before choosing the right process for your project. The differences between overmolding and insert molding include the following:

Insert Molding vs. Overmolding: Definition

• Insert molding:Insert molding is a molding method in which a pre-prepared insert of a different material is loaded into a mold, resin is injected, and the molten material is bonded and solidified with the insert to make an integrated product.
• Overmolding: Overmolding is a multi-step injection molding process that involves step-by-step molding with two or more components based on each other. It is also sometimes referred to as two-shot molding or duplex injection molding.

Insert Molding vs. Overmolding: The Process

• Insert molding:First, prefabricated inserts such as metal, plastic, glass, etc., are placed in a predetermined position in the mold. Then, molten plastic resin is injected, which is tightly bound to the insert and cured in the mold. Finally, the demoulding results in an all-in-one product with inserts.
• Overmolding:First, the matrix components, such as plastics, are molded and cured. The second layer of material is then formed directly on top of the first layer, resulting in a one-piece part. Overmolding is often used to make plastic parts with handles made of different materials, such as rubber.

Insert Molding vs. Overmolding: Material Selection

• Insert molding: Inserts can be metal, plastic, glass, wood, cloth, paper, wires, coils, electrical parts and other materials.
• Overmolding: A wide variety of materials can be used for overmolding, including thermoplastics such as ABS, HDPE, PEEK, Nylon, PC, PE, PEI, PBTR, PMMA, POM, PP, and thermoplastic elastomers such as TPE, TPU, TPR, etc.

Insert Molding vs. Overmolding: Cost

Overmoldingis more expensive than other molding methods because it involves two injection molding processes. In contrast, insert molding reduces overall costs and increases productivity by reducing the number of assembly steps, especially in high-volume production. However, both insert molding and overmolding are more expensive than traditional injection molding.

Insert Molding vs. Overmolding: Production Speed

Both processes take time. However, insert molding is comparatively more time-consuming due to the need to mold another layer on top of the product, i.e., the overall product encapsulation of the insert. In contrast, the overmolding injection molding process requires partial encapsulation. In addition to this, insert molding does not require the production of two plastic parts separately, whereas overmolding requires substrate and overmolding.

Feature	Insert Molding	Overmolding
Primary Purpose	Integrate inserts into plastic parts	Add layers/features to existing parts
Process Steps	Insert placed in mold, then plastic injected	Initial part molded, then overmolded with additional material
Materials Used	Combination of metal and plastic	Typically plastic over plastic, or plastic over metal
Typical Applications	Automotive components, electronic housings	Grips for tools, soft-touch handles, seals
Benefits	Enhanced strength, durability, and conductivity	Improved ergonomics, added insulation, enhanced appearance
Complexity	High, due to precise insert placement	High, due to multi-stage molding

How to choose insert molding or overmolding for your project?

The correct process betweeninsert molding and overmoldingdepends on the application. However, it is not possible to choose either for your project. However, you can judge from the large number of insert-molded and overmolded parts to determine the right process.
When to use insert molding

Insert molding is suitable for:

1. Connecting multiple components with robust mechanical fittings such as threaded nuts, snap-fit connectors is particularly suitable for housing manufacturing.
2. Attach rubber or plastic handles to metal parts such as hand tools and kitchen knives.
3. Sealed wires and electrical connectors in a plastic housing to protect against dust and moisture.
4. For plastic housings that require regular maintenance or battery replacement, using an inner lining is a little more costly, but it can enhance durability.

Overmolding is suitable for:

1. Improve the grip and feel of handheld parts and protect the user from vibration, heat, or electric shock.
2. Rubber is permanently bonded to metals such as wheels and casters.
3. Provide more design ideas and enhance the appearance and performance of parts with colorful designs.
4. Add cushioning and shock absorption to household items to protect users from accidental injuries.

FAQs

1.What are inserts in injection molding?

Inserts in injection molding refer to metal or non-metal parts embedded in plastic parts. These inserts can be metal (such as steel, stainless steel, aluminum alloy, etc.), glass, ceramics, wood or molded plastic parts. They are fixed inside the mold during the injection molding process and combined with the guided plastic to form an integrated product. The main function of inserts is to enhance the mechanical properties of plastic parts, provide specific functions (such as electrical conductivity, thermal conductivity, sealing, etc.) or meet specific functional design requirements.

2.What is inset molding?

Insert molding is a manufacturing technology that inserts pre-made metal, plastic or other material parts (called inserts) into the mold cavity during the plastic injection molding process, and then melts and combines with the plastic to form an integrated product. This technology combines the advantages of different materials, such as the strength, conductivity or heat resistance of metals with the lightweight, molding flexibility and cost-effectiveness of plastics, thereby creating a composite product with unique performance and functional characteristics.

3.What materials are used in insert molding?

The materials used in insert molding mainly include metal inserts (such as steel, stainless steel, aluminum alloy, copper, etc.) and non-metal inserts (such as glass, ceramics, wood, plastic, etc.). Metal inserts are widely used due to their high strength, high hardness, good electrical and thermal conductivity. Non-metal inserts are mainly used to meet specific design requirements or functional needs, such as providing a specific appearance, texture or corrosion resistance.

4.What is the difference between insert and over molding?

There are significant differences between insert molding and overmolding in terms of definition, process principle, application scenario, material selection, cost and production speed. Product developers should choose the appropriate molding process according to specific needs and design requirements.

Summary

As an advanced manufacturing technology, insert molding not only enriches the design possibilities of products, but also greatly improves the performance and quality of products. It is an indispensable part of modern manufacturing. With the continuous advancement of material science and injection molding technology, insert molding technology will show its unique value and potential in more fields.
