On the precision stage of mechanical transmission, pinions play a pivotal role with their tiny bodies. They are like notes in a precision mechanical movement, and every rotation and every bite accurately transmits power and movement. However, behind this seemingly simple mechanical action, there is a deep insight and precise selection of materials science. Today, the Longsheng team will take you through the vast world of materials science, from traditional metal materials to cutting-edge composite materials, and unveil the mystery of pinion machining materials one by one.

What is Pinion Machining?

The meaning of pinion machining refers to using raw materials (usually metals, such as steel, cast iron, aluminum alloys, etc.) through a series of mechanical machining processes, such as cutting, grinding, rolling, etc., to accurately produce pinions that meet the design requirements. process. The pinion is an important part of the mechanical transmission system. It transmits torque and rotational motion through the meshing between teeth, and realizes the conversion and transmission of mechanical energy.

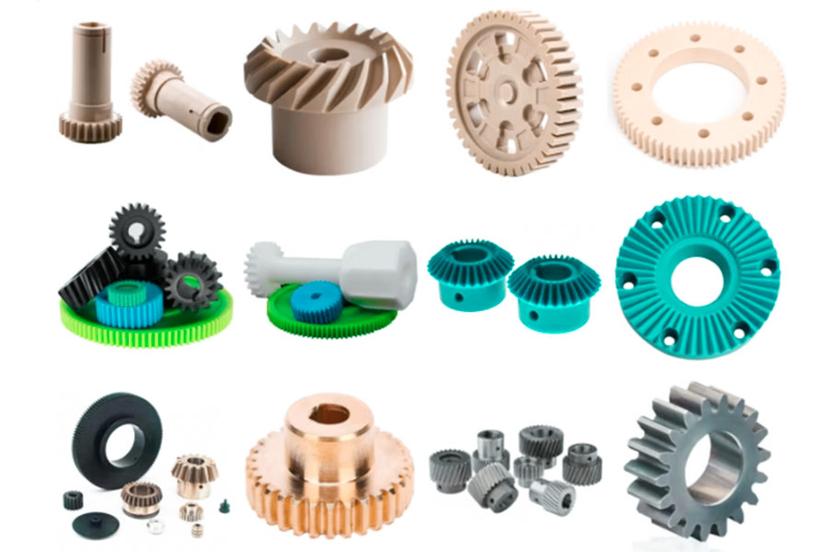

What Materials Are Used in Pinion Machining？

There are a variety of materials that can be used to produce pinions with these key properties. Below is an overview of each material and its unique advantages.

Cast iron

Cast iron is an ideal metal for precision pinion manufacturing due to its excellent wear resistance. It can withstand repeated and continuous wear without damage. Another major advantage of this material is that it can easily produce pinions with complex shapes and fine structures through casting methods. Although cast iron pinions may produce relatively loud noises during operation and have a high surface roughness, this does not affect their application in specific fields. They are usually used in applications that are less focused on smooth operation and more focused on durability and cost-effectiveness, such as heavy machinery, mining equipment, etc.

Steel

Steel alloy pinions are favored for their high strength, thanks to the heat treatment process they usually undergo, which significantly enhances the toughness and hardness of the pinion, especially in the tooth area. Steel alloy pinions can withstand large loads and torques, so they are widely used in various transmission systems. Among them, carbon steel has become the preferred material for the production of pinion components such as helical gears, spur gears, bevel gears, worm gears and racks due to its good mechanical properties and processing properties. These pinion components are widely used in the automotive, machinery, aerospace and other fields, providing stable and reliable power transmission for various transmission systems.

Brass

Brass is an alloy of copper and zinc. Manufacturers can use different brass alloys to vary the amount of zinc in the metal. Low-zinc brass is more ductile than other materials, and the copper base makes the metal antimicrobial and easy to machine. Brass pinions are often used in spur gears or racks for low-load applications.

Bronze

In addition to brass, other copper alloys include aluminum bronze and phosphor bronze. These non-magnetic pinions are best suited for corrosive environments.

Aluminum bronze combines copper, aluminum, nickel, iron, and manganese. This alloy has excellent wear and corrosion resistance, so it can be used in highly corrosive environments such as salt water, oxidation, and organic acid exposure. In addition, they are able to withstand high-load environments, making them ideal for use in worm and helical gears.

Phosphor bronze contains a combination of copper, tin, and phosphorus. The tin increases the alloy's strength and corrosion resistance, while the phosphorus increases the alloy's stiffness and wear resistance. Therefore, phosphor bronze gears are ideal for high-friction environments, especially worm gears, as the material resists both friction generated by the wheel and degradation caused by lubrication.

Aluminum Alloys

Pin pinions made from aluminum alloys have a protective surface treatment called passivation to prevent corrosion and oxidation. The most common aluminum alloys used to produce pinion gears include 2024, 6061, and 7075. Regardless of grade, all aluminum pinions are best suited for low to moderate temperature applications, as they begin to degrade at around 400°F.

Powdered Metals

Powder metal is one of the commonly used materials in pinion processing, with advantages such as high strength, good wear resistance and strong plasticity. Common metal powder materials include iron powder, steel powder, stainless steel powder, alloy powder, etc. Powder metal can be processed into pinions with specific shapes and properties through powder metallurgy process, such as powder metallurgy gears. This process has the advantages of high production efficiency, high material utilization rate and low cost, so it is widely used in pinion machining .

Thermoplastics

Thermoplastics are also one of the commonly used materials in pinion machining, with advantages such as light weight, low noise, and no need for lubrication. Common thermoplastic materials include polyoxymethylene (POM), nylon, poly(p-phenylene terephthalamide) (PPA), liquid crystal polymer (LCP), etc. Thermoplastics can be processed into pinions through molding processes such as injection molding and extrusion. These processes have the advantages of high production efficiency, low cost, and easy to realize automated production. At the same time, thermoplastics are also recyclable and degradable, meeting environmental protection requirements.

The application of different materials in pinion machining

As a key component in the transmission system, the choice of material directly affects the performance, reliability and service life of the system. Here are some examples of how different materials can be used in pinion machining:

1. Aerospace industry

In the aerospace industry, lightweighting is one of the important goals of transmission design. As a result, lightweight, high-strength materials such as titanium and carbon fiber composites are widely used in the manufacture of pinions. Titanium has excellent corrosion resistance and high-temperature properties, and is able to withstand heavy loads and high-speed operation in extreme environments. Carbon fiber composites, on the other hand, significantly reduce the mass of the transmission and improve the overall performance with their extremely high specific strength and stiffness. The use of these materials enables aerospace equipment to achieve more efficient energy use while maintaining high performance.

2. Industrial machinery

In the field of industrial machinery, the selection of materials for pinions mainly focuses on high strength, high wear resistance and corrosion resistance. Cast iron is often used to manufacture gears in high-load transmission systems due to its good casting performance and wear resistance. These gears need to withstand large impact loads and wear, and cast iron can provide good fatigue resistance and wear resistance. In addition, stainless steel is also widely used in transmission systems that need to resist the influence of corrosive environments due to its excellent corrosion resistance.

3. Automotive industry

In the automotive industry, the selection of pinion is very critical because it is directly related to the transmission efficiency, fuel economy and reliability of the car. Due to its high strength, good wear resistance and toughness, alloy steel is often used in the manufacture of ordinary gears and transmission shaft gears in automobile transmission systems. These gears need to withstand high torques and speeds, and at the same time have good fatigue resistance. In addition, with the development of lightweight trends, lightweight metal materials such as aluminum alloys are gradually used in the manufacture of automotive gears to reduce the weight and fuel consumption of the whole vehicle.

4. Consumer electronics

In consumer electronics, the gear transmission systems of small motors and home appliances require small size, light weight and low noise. Therefore, plastic pinions are widely used in these devices due to their light weight, low cost, easy processing and self-lubrication. Plastic gears not only meet the needs of miniaturization and lightweight, but also reduce noise and vibration through special design and optimization, and improve the overall performance of the equipment.

What are the selection principles for pinion machining materials?

When selecting materials for pinions, we should follow the following core principles to ensure the best balance between pinion performance, cost, production efficiency and environmental protection:

• To meet the requirements of use:This requires us to carefully select materials according to the specific working conditions of the pinion, such as the speed of the pinion, the size of the load, and the working environment (such as temperature, humidity, corrosive gases, etc.). For example, for pinions running at high speeds, we should choose materials with excellent fatigue strength and wear resistance; In the case of heavy loads or shock loads, the strength and toughness of the material become the primary considerations.
• Economical and reasonable:On the premise of ensuring that the performance of the pinion meets the requirements of use, we should try to reduce the manufacturing cost to improve the market competitiveness of the product. This includes choosing materials that are affordable and easy to source, as well as optimizing the amount of materials used to avoid unnecessary waste.
• Ease of processing:Choosing materials that are easy to process and form can not only improve production efficiency, but also further reduce costs. For example, certain materials may have good cutting properties, making the machining process smoother for pinions, reducing tool wear and machining time.
• Sustainability:When choosing the processing material for pinions, we should fully consider the environmental protection and sustainability of the material. This means that we should prioritize materials that have a lower environmental impact, such as those that are recyclable, degradable or have lower energy consumption in the production process. This not only helps to reduce environmental pollution, but also promotes the green development and social responsibility of enterprises.

FAQs

1.What are the materials used in pinion?

Common materials for pinions include steel, cast iron, nonferrous metals (such as copper alloys, aluminum alloys, etc.) and non-metallic materials (such as plastics, nylon, resins, etc.). The specific material to be selected depends on factors such as the working conditions, performance requirements and cost of the pinion.

2.What materials are used to make shafts?

Commonly used materials for shafts include steel, cast iron, aluminum alloy and non-metallic materials. Steel: high strength, high hardness, strong wear resistance, suitable for shaft transmission under harsh working conditions such as heavy load, high speed, high temperature, etc. Common steels include 45# steel, 40Cr steel, etc. Cast iron: low cost, good wear resistance, good impact resistance, but low strength, suitable for shaft transmission under conditions such as low speed, low load, and low temperature. Common cast irons include gray cast iron, ductile iron, etc. Aluminum alloy: lightweight, high strength, strong corrosion resistance, suitable for shaft transmission requiring lightweight under conditions such as high speed, low load, and low temperature. Common aluminum alloys include 6061-T6, 7075-T6, etc. Non-metallic materials: such as carbon fiber composite materials, ceramics, etc., have the advantages of lightweight, high hardness, strong corrosion resistance, and good vibration resistance, but the cost is high and it is easily affected by thermal expansion, and is suitable for shaft transmission with specific high performance requirements.

3.What are the materials of rack and pinion?

The material selection of rack and pinion is usually similar to that of pinions, and also depends on factors such as working conditions, performance requirements and cost. Commonly used materials include steel, cast iron, non-ferrous metals and non-metallic materials.

4.What are the 4 components of a rack and pinion?

Racks and pinions are usually composed of the following four main parts: ① Tooth surface: the key part of the rack and pinion, whose tooth shape and meshing determine the efficiency and smoothness of the transmission. ② Rim: the part of the outer diameter of the rack and pinion, usually used to improve the stiffness and load-bearing capacity of the gear. ③ Hub: For the pinion, the hub is the main part of the gear, usually composed of the hub body and the bearing seat. ④ Other auxiliary parts: such as bearings, shafts, seals, etc., these parts are also crucial for the transmission of racks and pinions. Bearings are important components that support the gear shaft and reduce the influence of axial and radial forces on the gear; the shaft is the part that connects the gear hub and the transmission device, transmits power and bears axial and radial forces; seals are used to prevent lubricant leakage and impurities from entering the gear transmission system.

Summary

Common materials for pinions include steel, cast iron, nonferrous metals (such as copper alloys, aluminum alloys, etc.) and non-metallic materials (such as plastics, nylon, resins, etc.). The specific material to be selected depends on factors such as the working conditions, performance requirements and cost of the pinion. The processing material of the pinion gear should be selected according to the specific use conditions and performance requirements. Steel is one of the most commonly used materials due to its good comprehensive performance; non-metallic materials such as plastics and composite materials have unique advantages in certain specific occasions; special alloy materials are suitable for use requirements under extreme conditions. By reasonably selecting materials, it can ensure that the pinion gear has good transmission performance and service life.
