Pinion machining plays a vital role in various industries including automotive, aerospace and heavy machinery. The quality of the final product depends largely on the correct manufacturing process. It's not just about the method; strict standards and regulations must be adhered to to meet performance and safety requirements. Whether through hobbing, broaching or other techniques, precision is key to ensuring efficient and safe operation of gears. In this article we will explorehow does pinion machining work?

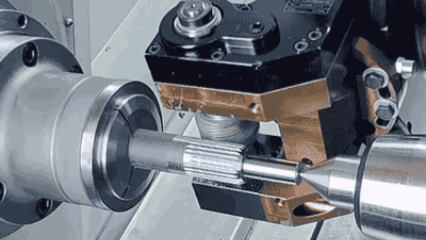

What is Pinion Machining？

Themeaning of pinion machiningrefers to using raw materials (usually metals, such as steel, cast iron, aluminum alloys, etc.) through a series of mechanical machining processes, such as cutting, grinding, rolling, etc., to accurately produce pinion gears that meet the design requirements. process. The pinion is an important part of the mechanical transmission system. It transmits torque and rotational motion through the meshing between teeth, and realizes the conversion and transmission of mechanical energy.

How Does Pinion Machining work？

Pinion machining is a complex and delicate process that often involves multiple steps and processes. The following are the general steps and working principles of pinion machining:

Processes	Description
Material preparation	Select raw materials that meet the design requirements and perform necessary preprocessing, such as cutting into appropriate shapes and sizes.
Rough machining	Processing raw materials into gear blanks close to the final shape and size through cutting, milling and other processes.
Tooth shape processing	Use special gear processing equipment, such as gear hobbing machines, gear shaping machines, etc., to accurately process the gear tooth shape. This step requires extremely high precision and stability to ensure gear meshing performance and transmission efficiency.
Heat treatment	In order to improve the hardness and wear resistance of gears, it is often necessary to perform heat treatment on processed gears, such as quenching and tempering.
Finishing	Perform further finishing on the heat-treated gear, such as tooth surface grinding, burr removal, etc., to improve the surface quality and accuracy of the gear.
Inspection and testing	Strict inspection and testing of the processed pinion gears, including dimensional measurement, shape and position error detection, surface roughness detection and transmission performance testing, etc., to ensure that it meets the design requirements and usage standards.

What is the importance of pinions in machining?

Pinions play a vital role in the operation of mechanical systems, transmitting power and controlling the speed of various machines. In the machining process, pinions are important components that enable equipment to operate efficiently and reliably. Whether used in industrial applications or small machinery, pinions ensure smooth transmission of power, which directly affects the overall performance of the equipment.

• Power direction adjustment:Pinion gears play a key role in changing the direction of power in many application scenarios, such as automobile transmissions. Specifically, the design of the pinion allows the vehicle to flexibly switch between forward and reverse, providing the necessary directional flexibility for various mechanical operations.
• Precise speed control:Pinions play an important role in speed control of rotating equipment. By using different sizes and configurations of pinions, the machine can precisely increase or decrease its operating speed, ensuring efficient execution of tasks. This feature is particularly important in equipment such as conveyors that need to adjust speed according to load conditions.
• Efficient torque conversion:Pinion size and ratio adjustment are key to achieving speed and torque conversion. High torque output is crucial in applications such as drilling and milling that require penetration of hard materials. By properly adjusting the pinion, the machine is able to convert high speed rotation into the required high torque output.
• Direction of rotation:Pinions also have the ability to change the direction of rotation, which plays a vital role in a variety of systems. Taking robots and cars as examples, the changing function of pinions allows these machines to perform complex tasks such as reversing and rotating, thereby increasing the flexibility and diversity of their operations.
• Precision motion control:In high-end fields such as robotics and aerospace, pinions play a vital role as they provide the extremely high precision required to achieve precise motion. This fine control of positioning and movement ensures that the system can operate stably with predetermined accuracy even in high-risk environments and meet stringent operational requirements.
• Efficient power distribution:Pinions play a vital role in mechanical power transmission systems. They ensure the efficiency of power distribution of the entire mechanical system. Through precisely designed pinions, power can be efficiently distributed to various parts of the machine, allowing multiple components to work together without causing imbalance or causing one area of ​​the system to bear excessive loads. , thus ensuring the overall performance and stability of the machinery.
• Rotation speed regulation:The pinion plays a decisive role in ensuring that the machine runs at a precise rotational speed. By carefully adjusting the speed of the pinion, we are able to precisely calibrate the machine so that it can perform a specific task at the optimal speed, ensuring efficiency while preventing excessive stress on the machine.
• Smooth transmission of power:In machining, pinions also occupy a central position. Its key function is to smoothly transmit power from one component to another, ensuring the smooth operation of the entire mechanical system. This power transmission method ensures that energy can be evenly distributed to all parts of the machine, thereby maintaining the continuous and efficient operation of the machine.
• Flexible torque conversion:By carefully adjusting the gear ratio, we can achieve flexible conversion from high-speed, low-torque rotation to low-speed, high-torque output. This feature is critical for heavy machinery, which often require large amounts of torque to complete heavy-duty tasks such as lifting, drilling or cutting.

What are the types of pinion machining processes?

Pinion machining encompasses a variety of methods that enable manufacturers to create high-quality gears for a variety of applications. The choice of method depends on factors such as the materials used, the accuracy required, and the specific gear type being produced. The following are the key processes used in pinion machining, each providing unique advantages and capabilities for different applications.

Gear Hobbing

Gear hobbing is one of the most common gear cutting processes, widely used for its speed and efficiency. In gear hobbing, a rotating cutting tool called a hob gradually removes material from the gear blank to form teeth. The hob rotates at high speed while simultaneously cutting into the gear blank, which is also rotating. This process is well-suited for mass production and can be used for a wide range of gear types, including spur gears, helical gears, and worm gears.

Gear hobbing is particularly effective for high-volume manufacturing because it allows for the continuous cutting of gears. This process is frequently used in the automotive and industrial machinery sectors, where large numbers of gears are required. The precision and speed of gear hobbing make it a popular choice for manufacturers looking to produce gears with consistent quality in a cost-effective manner.

Gear Shaping

Gear shaping is a high-precision gear manufacturing and cutting technology specifically used to produce gears that are difficult to achieve with hobbing processes. When machining gears, the cutting tools used are of various shapes, including pinion-shaped, rack-shaped or single-point. For the production of internal gears and combination gears, cutting tools can be selected from spur or helical gear designs. During the machining process, the cutting tool moves in the axial direction while the workpiece rotates, thereby accurately indexing the entire width of the workpiece until a complete and uniform tooth profile is formed around its perimeter. Once the machining operation is complete, the machine tool stops and the workpiece has been successfully machined into the gear.

EDM (Electrical Discharge Machining)

EDM (Electrical Discharge Machining) is a non-traditional machining process that uses electric discharge to remove material from a workpiece. It is also known as spark machining, electrical discharge etching, mold engraving, wire cutting or wire etching. In EDM, the electric spark is used to erode material from the workpiece. The workpiece is connected to the negative terminal of the power supply and the electrode is connected to the positive terminal. The electrodes are usually made of graphite or copper and designed into the desired shape. When the electrode is brought close to the workpiece, sparks travel across the gap, heating the material to temperatures of approximately 8000°C. This causes the material to melt and evaporate, forming a small crater in the workpiece. Then move the electrode slightly and repeat the process. EDM is commonly used in manufacturing to produce complex shapes and contours that are difficult or impossible to achieve with traditional machining processes. It is often used to make molds, dies and other tools used to produce other CNC parts.

Gear Milling

Gear milling refers to using a gear milling cutter to cut out the teeth on a gear workpiece whose module is equal to or smaller than the gear diameter. The processing principle is to use the relative motion of the milling cutter and the workpiece to make the tooth edges of the milling cutter contact and cut respectively with the teeth on the surface of the workpiece.

What are the applications of pinion machining?

Pinions are useful in many different industries. They are useful because they transmit movement and power efficiently. In every industry, these pinions help machines run better and smoother. Below, we'll see how pinions can play a positive role in different areas.

Automotive Industry

In the automotive industry, pinions are an important part of the vehicle's transmission system. The transmission system includes the components that move the car forward or backward. Pinions are often used as a "differential" to help manage the power delivered to the wheels. This allows the wheels to turn at different speeds when the car turns. In a differential, the pinion gear works together with the ring gear. These two gears help the wheels spin smoothly at the correct speed. Pinions are also used in steering systems. In this system, they help convert the turns of the steering wheel into the motion needed to move the wheels.

Industrial Machinery

In factories and industries, pinions are often used in heavy machinery. They are used to control the movement of different machine components and transmit power efficiently. For example, a conveyor belt that moves items from one place to another uses pinions to drive the conveyor belt at the appropriate speed. Pinions are also used in printing presses. In this case, they help control the rollers to ensure that the image is clear and printed correctly. In cranes and lifts, pinions are used to lift heavy objects and help move loads up and down accurately and safely.

Robotics and Automation

With the rise of robotics and automation, pinions have found new uses. In robots, they are used in joints to precisely control movement and provide appropriate torque. Torque is the force that causes an object to rotate.
In factories with automated machines, pinions are often used in servo motors, which help control robotic arms and other machine parts. Because pinions are small and efficient, they are ideal where space is limited but precise movement is important.

Aerospace Industry

The aerospace industry also makes good use of pinions. In aircraft engines, pinion gears help control the speed and torque of different engine components. They are also part of the landing gear system, ensuring smooth and safe deployment and retraction of the wheels. In the aerospace industry, safety and performance are very important. The high reliability of pinions is therefore a key advantage for this industry.

What is Rack and Pinion?

Racks and pinions form an efficient device for converting rotary motion into linear motion. This device contains two core components: one is the rack, which is a long and straight rod with teeth designed on one side; the other is the pinion, which is a circular gear with teeth and The teeth of the rack mesh precisely. When the pinion rotates, it drives the rack to move in a straight line. This mechanism allows precise control of linear motion based on the rotation of the pinion. Take the steering system of a car as an example. When the driver turns the steering wheel, this action causes the pinion to rotate, which in turn drives the rack to move, ultimately turning the car's wheels.

How do rack and pinion work?

From the above introduction, you may already know the combination of rack and pinion, but you may not know much about their working principle and their specific uses in practical applications. The rack and pinion are a pair of gear components that work together. Their main function is to convert rotational motion into linear motion. This conversion process relies on a circular gear, commonly known as a pinion, whose teeth mesh with an elongated, toothed member called a rack. Once the pinion starts rotating, it converts the force of this rotation into the force of linear motion of the rack in a certain direction.

What are the applications of rack and pinion?

Racks and pinions are commonly used in the steering mechanism of automobiles or other wheel-steering vehicles. Here are just a few common applications where rack and pinion gear sets are often used:

1. Car Steering:This system works by converting rotational motion into linear motion. Most cars, small trucks, and SUVs have a rack-and-pinion system instead of the recirculating ball steering found in larger trucks, large SUVs, and other heavy-duty vehicles.
2. Railways:Cog railways are mountain railways that use racks built into the center of the track and pinions on the locomotive. This allows them to travel on steep slopes up to 45 degrees, whereas conventional railways rely solely on friction to move. Additionally, the addition of racks and pinions gave these trains controlled braking and reduced the impact of snow or ice on the rails.
3. Stair lifts:Almost all stair lifts contain a rack and pinion gear that allows for upward movement in a similar manner to the above.
4. Actuators:Actuators are machines that move various components, such as pipe conveying systems. In such a system, the rack and pinion help control the valves required for the basic functions of the system.

FAQs

1.How do pinions work?

The pinion gear transmits rotational power and torque from one place to another by meshing with the tooth profile of the mating gear, while changing the rotational speed according to the ratio of the number of teeth between the gears.

2.What is the function of the pinion?

Pinions play a vital role in the operation of mechanical systems, transmitting power and controlling the speed of various machines. In the machining process, pinions are important components that enable equipment to operate efficiently and reliably. Whether used in industrial applications or small machinery, pinions ensure smooth transmission of power, which directly affects the overall performance of the equipment.

3.What is the fastest manufacturing method for pinion machining?

Gear hobbing is one of the fastest methods in gear manufacturing and is particularly suitable for mass production, whether spur or helical gears. In this process, the hob plays a key role as a cutting tool that efficiently generates gear teeth. Gear hobbing is therefore the ideal process choice for high-volume gear manufacturing using CNC machines and machining centers.

4.Why pinion is made harder than gear?

Pinions are generally harder than gears for the following main reasons: In gear transmissions, pinions are subject to relatively large bending and contact stresses due to their smaller diameter. Pinion gears have more tooth surface contact than larger gears and are therefore more susceptible to wear. Differences in pinion hardness have a significant impact on the performance and service life of the gear. Higher hardness helps the pinion maintain better wear resistance and strength during transmission, thereby improving transmission efficiency. At the same time, appropriate hardness differences also help ensure the smoothness of gear transmission and reduce vibration and noise.

Summary

Pinion machining uses a variety of machining centers and methods depending on the material, size and type being produced. The ultimate goal is to produce pinions that can withstand operating stress while maintaining precision in movement and power transmission. With the continuous advancement of manufacturing technology, the machining process of pinion gears will become more efficient and intelligent, providing higher-quality components for mechanical transmission systems.
